1-KEY Controller

Detailed Product Description

Summarization
     1-key controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on;It t has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.


Technical Parameters
● working temperature: -20-60℃
● supply voltage: DC5V,12V, 18V,24V optional(specify the required voltage on order form)
● output:3 channels
● connection mode: common anode
● external dimension: L74ΧW50ΧH29 mm
● packing size: L122ΧW85ΧH42 mm
● net weight: 70g
● gross weight: 95g
● static power consumption: <1W
● output current: <4A
● output power: 5V:<60W, 12V:<144W, 24V:<288W

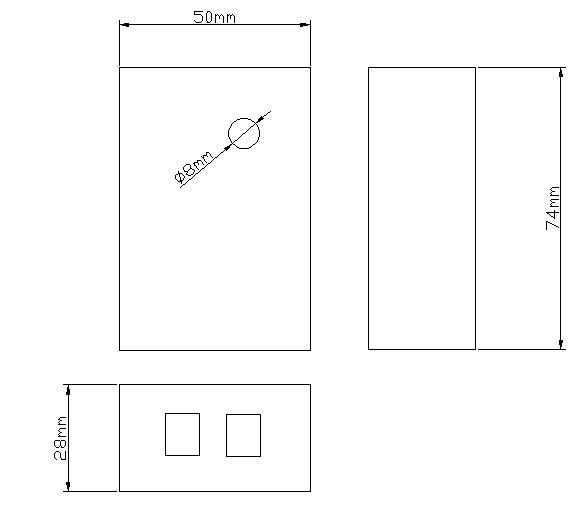

External Dimension

Interface Specification

Power input interface:

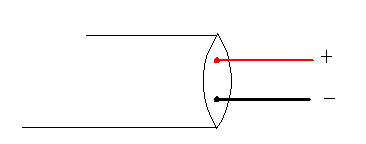

Adopt two sheath wires,remark: red wire→ +  black wire→ -

Load output interface:

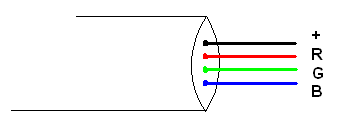

Adopt four sheath wires, remark: black wire→ +  red wire→R   green wire→G

 blue wire→B

Direction for Use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power
2. Adopt button control,its function as follows:

mode: pattern function button,you could choose different patterns in the 12 changing patterns;

1. Standard color change as the following form:

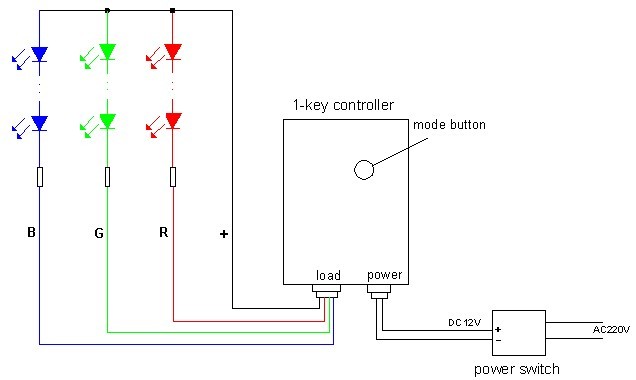

Typical application
