150W Single Output
| Place of Origin | China |
|---|---|
| Brand Name | Okled |
| Model Number | S-150W |
| Inquiry | |

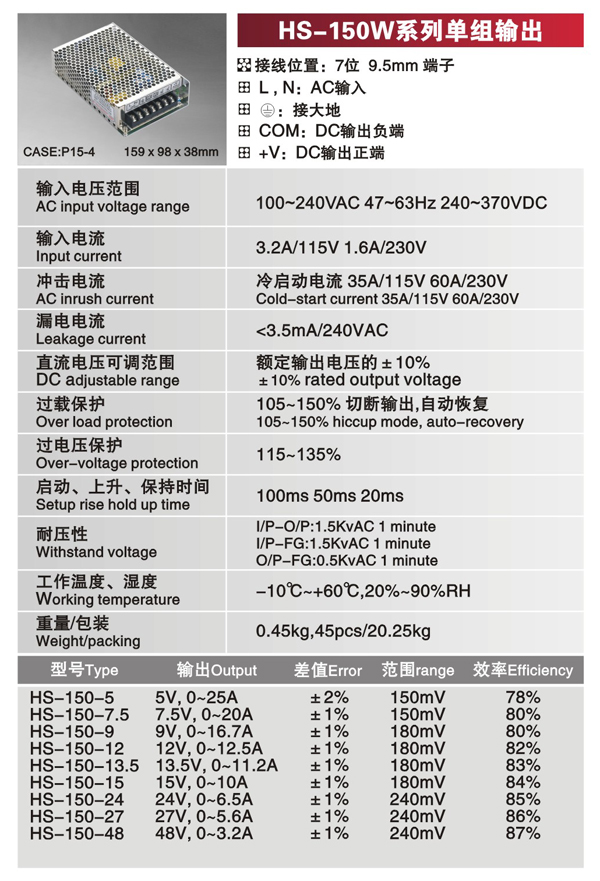

Detailed Product Description
|
Model Specification |
HS-150-5 |
HS-150-12 |
HS-150-24 |
|
DC output voltage |
5V |
12V |
24V |
|
Output voltage range（Note:2） |
±1% |
±1% |
±1% |
|
Rated output current |
25A |
12.5A |
6.5A |
|
Output current range |
0-25A |
0-12.5A |
0-6.5A |
|
Wave and noise(Note:3) |
100mvp-p |
100mvp-p |
100mvp-p |
|
Inlet stability(Note:4) |
±0.5% |
±0.5% |
±0.5% |
|
Load stability(Note:5) |
±0.5% |
±0.5% |
±0.5% |
|
DC output power |
125w |
150w |
156w |
|
Efficiency |
78% |
80% |
83% |
|
Adjustable range for DC voltage |
4.5~5.5v |
10.5~13.2v |
21.5~27v |
|
AC input voltage range |
85~132VAC/176-264VAC selected by switch 47~63Hz;248~370VDC |
||
|
Input current |
3.2A/115V/ 1.6A/230V |
||
|
AC Inrush current |
20A/115V 40A /230V |
||
|
Leakage current |
<3.5mA/240VAC |
||
|
Overload protection |
105%~150% Type:pulsing hiccup shutdown Reset:auto recovery |
||
|
Over-voltage protection |
115%~135% Type:pulsing hiccup shutdown Reset:auto recovery |
||
|
High-temperature protection |
>=800C~850C，Cut off output(5~15V)~(24~48V) |
||
|
Temperature coefficient |
±0.03%/0C(0~500C) |
||
|
Setup,rise,hold up time |
200ms,100ms,20ms |
||
|
Working temperature and humidity |
-100C~+600C（Refer to output derating curve）,20%~90%RH |
||
|
Store temperature and humidity |
-200C~+850C，10%~95%RH |
||
|
Overall dimension |
159×98×38mm |
||
|
Weight/packing |
0.45kgs, 30pcs/22KG |
||
|
Safety standards |
Design refer to UL 1950 |
||
|
EMC standards |
Desgn refer to FCC Part15J classA |
||
|
|
|||
