6-KEY Controller

Detailed Product Description

Summarization
       6-key controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on;It has power-fail memory, synchronized indicator light show and other functions. At the same time,it has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.

Technical Parameters
 ● Working temperature: -20-60 ℃
 ● Supply voltage: DC5V, 12V ,18V, 24V（Order goods need marking out the required voltage)
 ● Output: 3 channels

 ● Connecting mode: common anode
 ● External dimension: L89ΧW70ΧH28 mm
 ● Packing size: L145ΧW95ΧH50 mm
 ● Net weight: 120g
 ● Gross weight: 155g
 ● Static power consumption: <1W
 ● Output current: <4A(each channel)
 ● Output power: 5V:<60W, 12V:<144W, 24V:<288W

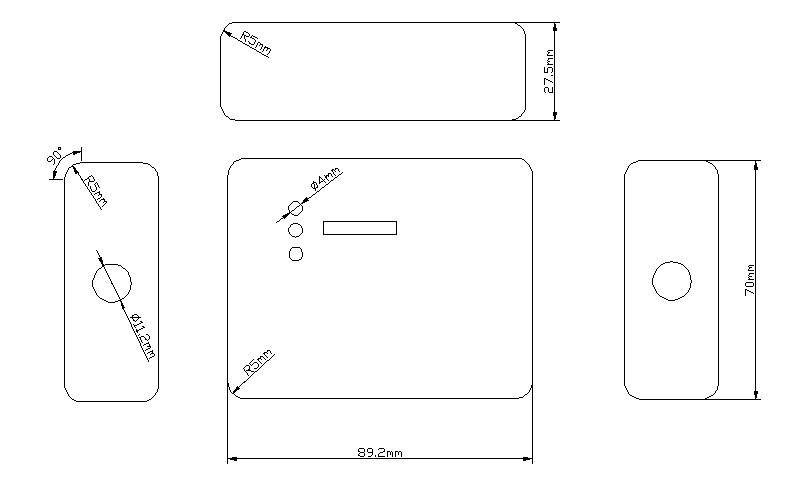

External Dimension

Interface Specifications
  Power input interface:

Adopt two sheath wires as connecting wires, meanwhile, Red→ +Black→ -

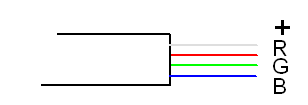

  Load output interface:

 Adopt four sheath wires as connecting wires,meanwhile, White wire→ +  Red wire→R   Green wire→G
 blue wire→B

Direction for use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Adopt film button control，there are six buttons altogether, and the key function as follows:
on/off: In any state，you could turn on or turn off the output of controller;
mode: Pattern function key,you could choose the different changing mode;
brightness ▲: Adjusting brightness button,the brightness progression will add one when you press the button every time;
brightness ▼: The brightness progression will subtract one when you press the button every time;

speed ▲: The speed changing progression will add one when you press the button every time;
speed ▼: The speed changing progression will subtract one when you press the button every time.
3. Standard functional changes have been listed as follows:

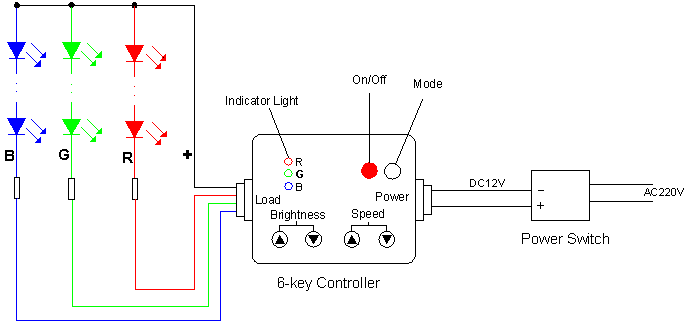

Typical Applications
