Color Temperature Adjustable LED Controller
| Place of Origin | China |
|---|---|
| Brand Name | Okled |
| Model Number | LN-RF001CT |
| Inquiry | |
Detailed Product Description

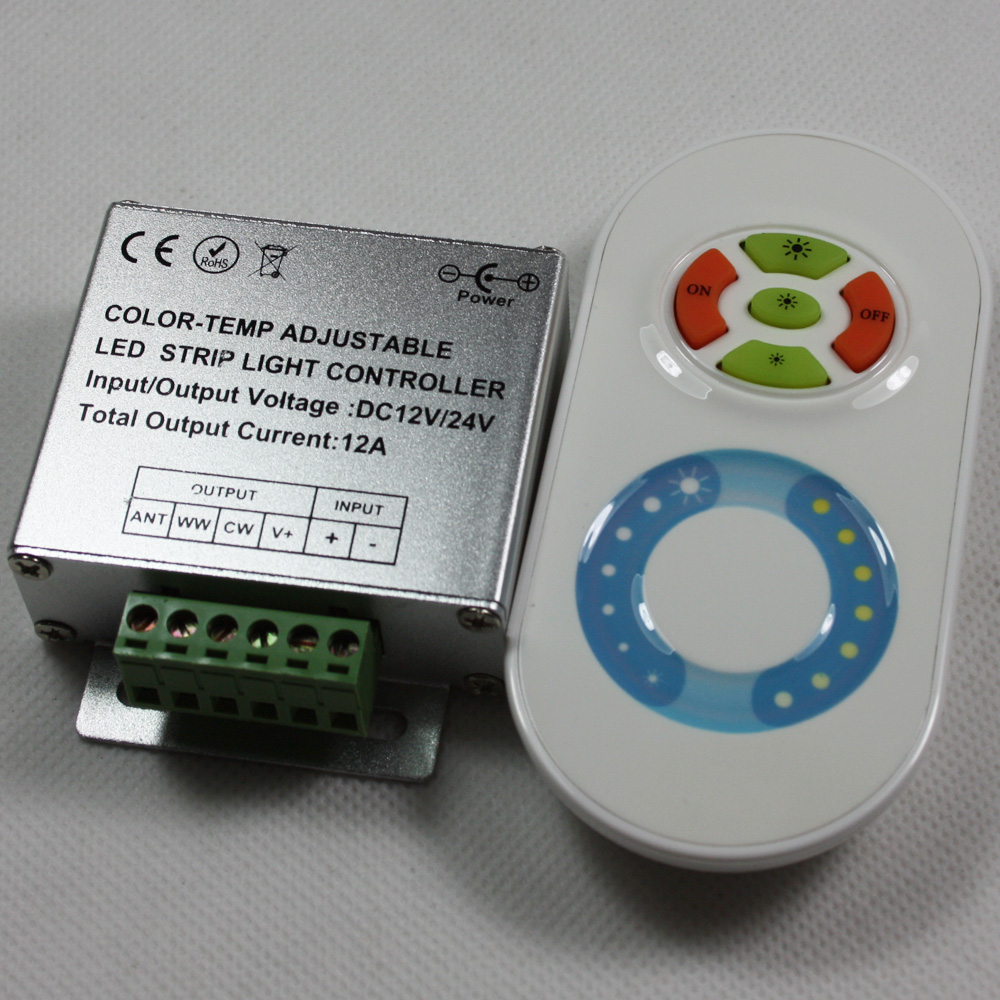

Color temperature Adjustable LED Controller
Technical Parameters(remote control)
1) Power supply: AAA battery * 3pcs
2) Cover material:ABS
3) Fabrication processing: multicolour printing & UV varnish
Technical Parameters(controller)
1) Working voltage: DC12V/24V
2) Output control: 2 circuits
3) Control current: 6A/circuit
4) Connecting mathod: common anode
5) Dimension: L85*W64*H24
6) Receiving range:20meters
Functions of Keys
1 Key 1: medium brightness
2 Key 2: on
3 Key 3: off
4 Key 4: highest brightness
5 Key 5: lowest brightness
How to use
1 . Brightness Adjusting :Use your finger to touch the left half part of color ring ,you can change the brightness from the highest to the lowest(100%-1%,20 grades of Brightness to adjust)
2 Color temperature Adjusting: Use your finger to touch the right half part of color ring,you can adjust the temperature from warm white to cool white(11grades to adjust).
3 Resume fuction. The previous settings will be resumed while power on again.
4, Matching code:Press Key 4 once within 3 seconds when power on again, the light will blink 3 times if matching is successful.
5, Clearing Code:Press Key 4 five times within 3 seconds when power on again, the light will blink 3 times if matching is successful.
|
Specifications: |
|||||||
| Item NO: LN-RF001CT | |||||||
| Input Voltage: DC12V,DC24V(optional) | |||||||
| Connection type: Common anode | |||||||
| Radio frequency: 433.92MHz | |||||||
| Receiver sensitivity: -105dbm | |||||||
| Radio receive way: ASK | |||||||
| Max STDBY current: 10mA | |||||||
| Max load: 6A(each circuit) | |||||||
| Control mode: PWM, 15 modes | |||||||
| Control way: touch the color ring ,you can change the brightness from the highest to the lowest (100%-1%,50 grades to adjust) | |||||||
| Static power consomption: 30LED/M : ≤5.4W 60LED/M: ≤10.8W | |||||||
| Static current: 30LED/M : 450mA 60LED/M: 900mA | |||||||
| Working temperature: -20~80 degrees | |||||||
| Material : Controll: aluminum remote: ABS+PC | |||||||
| Life span: 50,000h | |||||||
| Size: 85×64×24mm | |||||||
| Packing: 7*7*15cm | |||||||
| G.W.: 0.15kgs/set | |||||||
| Telecontrol distance: 20m |
Caution
Please don’t touch or press the color ring while loading the battaries to protect the sensitiveness. Please use the remote controller 3 seconds after the battaries are loaded.Please reload the battaries when you find the color ring is not sensitive.
After-sales service
we claim to offer free maintenance or change new product if any problems occur within one year.
The buyer should pay for the maintenance due to unfollowing the instructions even within one year. The maximum duty of our company is to change the product with the same item No. and quantity if any damage occur.
1. Incorrect operation mainly due to unfollowing instructions.
2.Damage caused by uploading, fixing,changing circuit ,connecting or changing the
chips unprofessionally.
3.Damage caused by shipping,shaking,dropping or water inflowing after buying.
4. Damage caused by natural disasters suchas,earthquake,fire,flood,thundering,environmental pollution or abnormal voltage.
5.Damage caused by high temperature,moisture,hazardous chemicals or inappropriate maintenance.
6.Our products have been updated newly.
