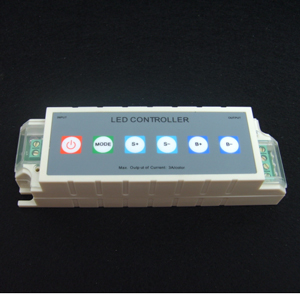

Common 6key controller

Detailed Product Description

Summarization
Common 6key controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible strip light, wall washer lamp, glass curtain wall light and so on;It t has many advantages such as easy connection and simplicity to use; According to the actual need of customers,it can carry out gradual change,stroboflash and other effects of change.



Technical parameters
● working temperature: -20-60 ℃
● supply voltage: DC5V, 12V ,18V, 24V < optional > ( supply voltage should be marked on order )
● output: 3 channels
● external dimension: L130 Χ W40 Χ H31 mm
● packing size: L140 Χ W50 Χ H60 mm
● net weight: 85 g
● gross weight: 110 g
● static power: <1W
● output current: <3A( each channel )
● output power: 5V<45W,12V<108W,24V<216W

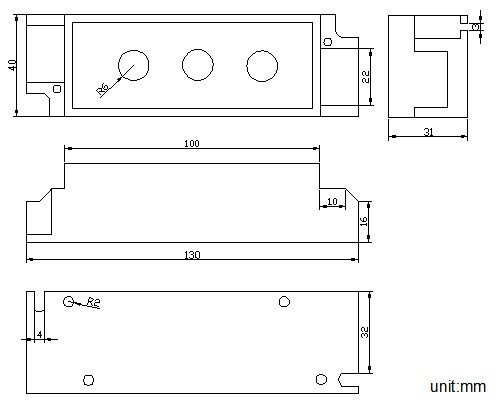

External Dimension

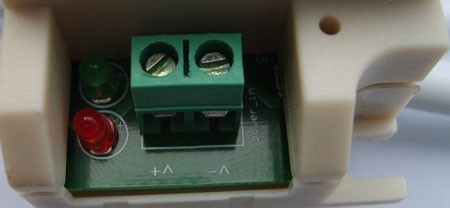

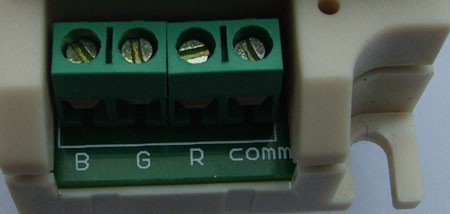

Interface Specifications

Adopt male and female connector with screw.

Direction for Use

      1.  Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2.  There are six keys on the controller panel, the funtion of each key as follows:

ON/OFF: you could turn on/off controller at any time;

  MODE: the color change button,there are 21 modes of change for you to choose;

B+: A brightness control button,the step of the brightness add 1 by each pressing,a total of 256 steps;

B-: The step of the brightness subtract 1 by each pressing;

S+: The step of the speed change add 1 by each pressing,a total of 100 steps.

S-: The step of the speed change subtract 1 by each pressing.

3.  Standard changes funtion as the following form:

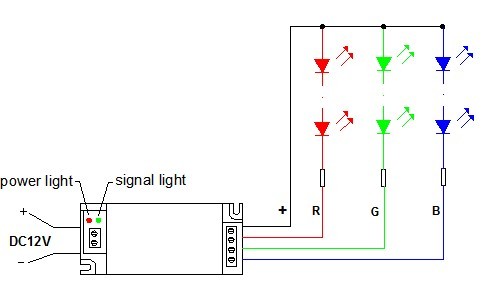

Typical Applications
