DALI Amplifier（700mA constant current output with one channel）

Detailed Product Description

Summarization

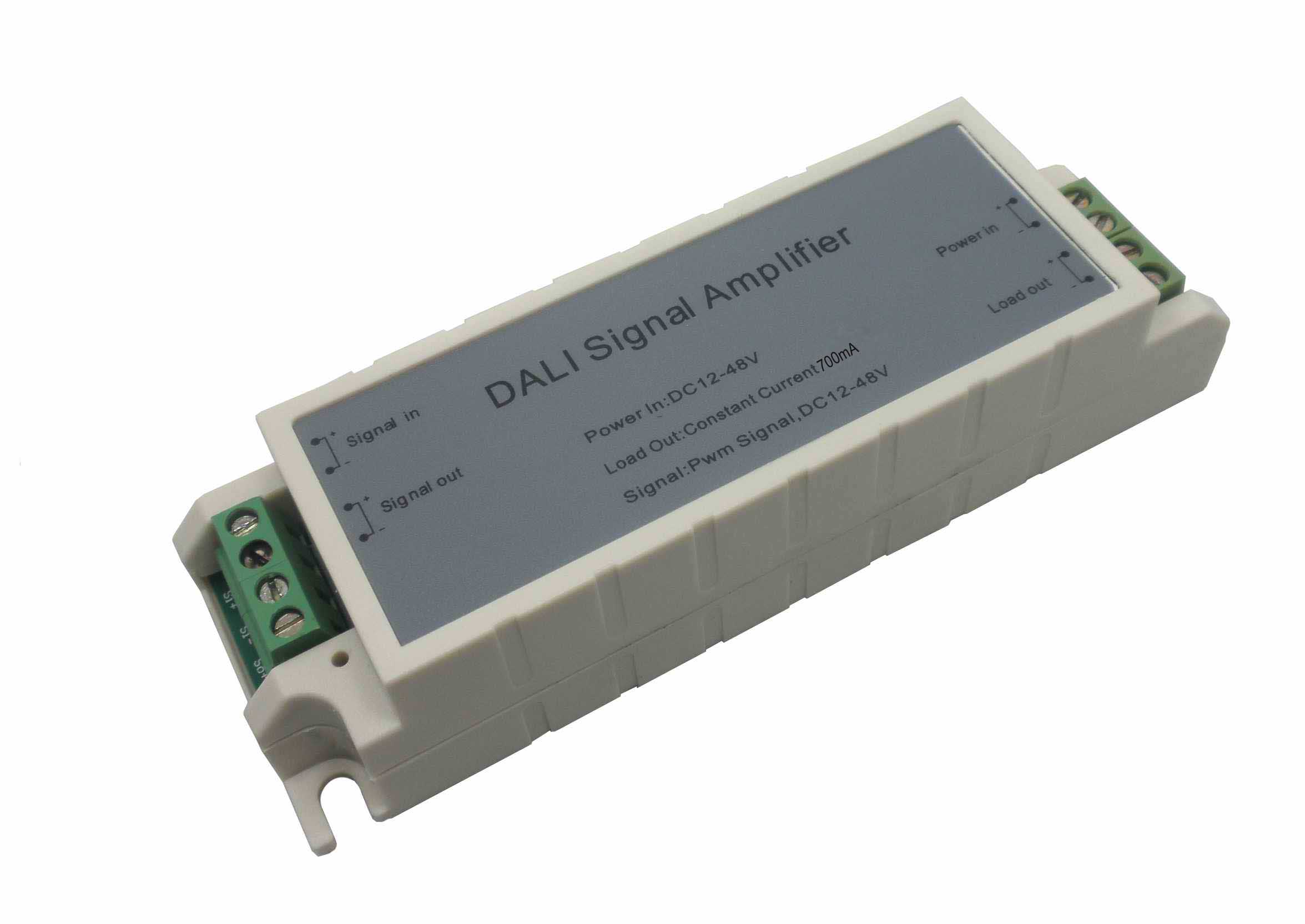

LN-DALI-AMP-1CH-700mA is our independent research and development production of a DALI amplifier is mainly used in signal transmission distance, due to line losses and environmental disturbances caused by signal distortion and attenuation, to be amplified using amplifier shaping may be required to increase the load power applications.



Technical parameters
● Supply voltage: DC12V-48V , Current≤4A
● Output current : constant 700mA
● Signals Using high-speed opto isolated , isolated voltage 2.5 kv
● Signal input voltage range :12-48VDC
● Power input voltage :12-48VDC
● 350mA constant current output with the way the load can be connected to LED lights for 1-12 1W stars .
Reference: 12V to 3; 24V to 6; 48V to 12.
● Signal Input: PWM dimming signal, DC12-48V.
● Signal output: PWM dimming signal, NMOS open-drain output , voltage of power supply voltage.
● External dimension: L130ΧW40ΧH52 mm.
● Packing size : L140ΧW50ΧH60 mm
● Gross weight : 92g
● Net weight : 62g
● Protection grade : IP22
● Working temperature : -20~60℃

External Dimension

Interface Specifications

 Signal input interface:

Signal output interface:

Typical Application

1 . series connection

2 . parallel connection

3 . series connection and parallel connection
