DIMMER

Detailed Product Description

Summarization
Dimmer is a controller that it can adjust brightness, its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.


Technical parameters
●Working temperature: -20-60℃
●Supply voltage: DC5V,6V, 12V,24V optional(specify the required voltage on order form)
●Output: 1 channel
●External dimension: L61ΧW33ΧH32 mm
●Packing size: L105ΧW65ΧH40 mm
●Net weight: 30g
●Gross weight:55g
●Static power consumption: <1W
●Output current: <2A
●Power output: 5V<10W,12V<24W,24V<48W

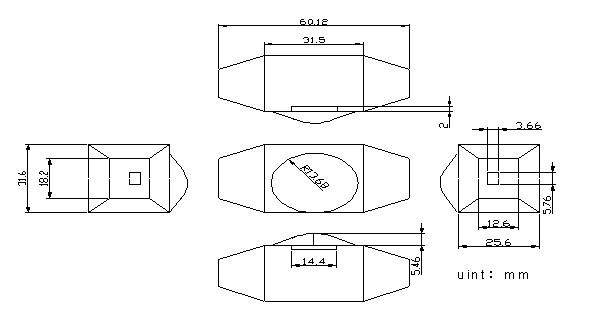

External Dimension

Interface Specifications

 Power input interface:

Load output interface:

Direction for use

1.  Connect the load wire at first, following by the power wire;

1. Adopt rotary button,its function as follows:

Rotate button to the right,brightness will be brighter,when you rotate it to the far right,the brightness is greatest.

Rotate button to the left,brightness will be darker,when you rotate it to the far left,the light will be turned off.

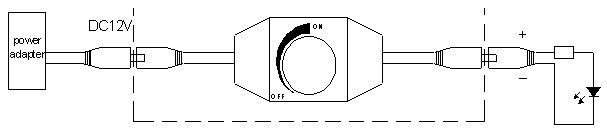

Typical Applications
