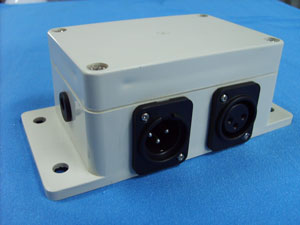

DMX Amplifier

Detailed Product Description

Summarization

     The DMX amplifier accepts the signal exporting regular voltage DMX again behind DMX signal , is used to prolong the DMX signal transferring distance mainly , increases the DMX signal drive ability.

Technical parameters

  working temperature: -20-60°C

  supply voltage: DC5V, 12V ,18V, 24V optional(Specify the required voltage on order form)

  external dimension:L140ΧW70ΧH50mm

  packing size: L150ΧW80ΧH60mm

 net weight: 195g

 gross weight: 230g

 Input signal :DMX signal

 Output signal: DMX signal

External Dimension

Interface Specifications

           power input interface:

Adopt conventional DC power transposon as power input interface.

 signal input/output interface:

Adopt three-core kalong seat as signal interface.

Direction for Use

       according to the panel of DMX amplifier, to connect input and output signal wires in order to ensure short circuit can not occur between wires,and then connect power for DMX amplifier,and RGB amplifier goes hand in hand with DMXcontroller,please refer to the following < Typical applications>.

Typical Applications
