DMX-SPI Decoder
| Place of Origin | shenzhen |
|---|---|
| Brand Name | okled |
| Model Number | DMX200 |
| Inquiry | |
Detailed Product Description
Summarization
The DMX-SPI decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal that is widely used in the international and transformes it into SPI signal to drive LED, it supports 10 kinds of different model of lights, at the same time the port of DMX signal has lightning protection measures; you could connect the DMX decoder with DMX digital console to achieve dimming or various changes in procedures. Not connected with DMX console, you can choose select the built-in 35 kinds of default patterns through the modle button, the default points is 1024.
Technical Parameters
Controller
● Working temperature: -20-60 ℃
● Input voltage: DC5-24V
● Output: SPI signal (DATA, CLK)
● External dimension: L175 x W53 x H27（mm）
● Packing size: L180 x W58 x H55（mm）
● Net weight: 256.2g
● Gross weight: 292.6g
● Max output:480W
External Dimension

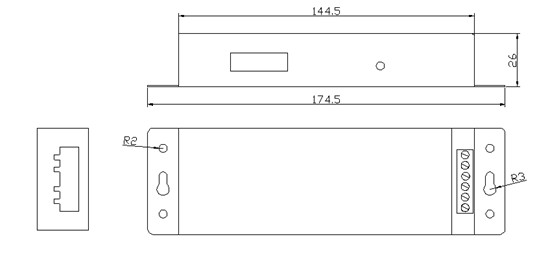

Controller External Dimension:
Interface Specification

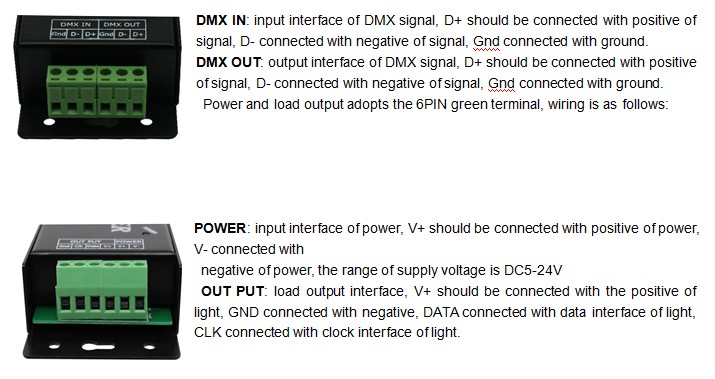

Interface of DMX signal adopts the 6PIN green terminal interface, wiring is as follows:
Direction for use
1. parameters settings of decoder
You can modify the light type that decoder supports through the DIP switch. The decoder can support 10 kinds of SPI strips in market. As follows:
|
Number |
Model |
Signal line |
|
1 |
LPD6803 |
DATA, CLK |
|
2 |
TM1803 |
DATA |
|
3 |
TM1809 |
DATA |
|
4 |
TM1812 |
DATA |
|
5 |
UCS1903 |
DATA |
|
6 |
WS2811 |
DATA |
|
7 |
WS2801 |
DATA、CLK |
|
8 |
TLS3001 |
DATA |
|
9 |
TLS3008 |
DATA |
|
10 |
P9813 |
DATA, CLK |
If there are 2 signal lines, then you need to connect the ground wire, clock line, data line with GND、CLK、DATA; if it is 1 signal line, then just need to connect the ground wire, data line with GND、DATA.
Remark: if the V+ voltage of strip is the same with controller input voltage, then it can directly connect with the controller V+; if not, you need to connect another power supply.
Since the specifications of light in the market are different, the sequence of RGB may be different, the sequence of some lights is RGB, some sequence is RBG, GRB and so on, so the DIP switch provides modification of RGB sequence.
