EL Wire-Round(Original Polar Light

Detailed Product Description

Specification:

Wire diameter: 0.9/1.4/2.2/2.6/3.2/4.0/5.0mm

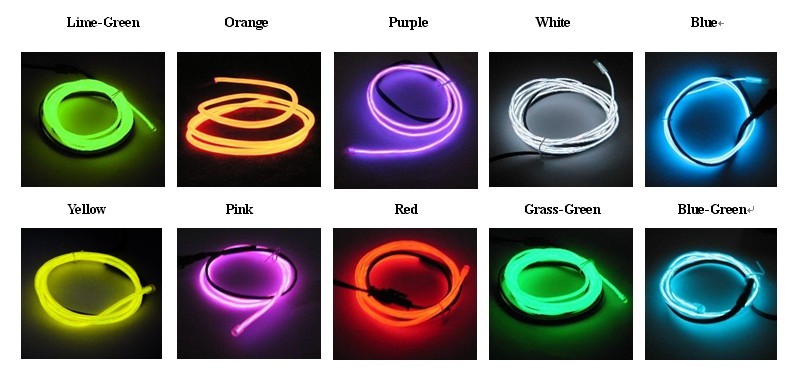

Wire color: Aqua, Blue, Yellow, Green, Lime, Orange, Pink, Purple, Red and White 10 colors available



***EL WIRE High Quality&Inferior Difference comparison table***

Difference detail

"Polar light 3" EL WIRE

"Polar light 2"EL WIRE

"Shining A"EL WIRE

Cheap  Inferior EL WIRE

EL Powder

100% OSRAM U.S.A imported

Japan(Not dampproof)  .China(Cheap)

Electric conduction

Copper line +Silver conductor (Smooth.not oxidize. Incorruptible  )

Copper line+Tinned conductor( Easy to oxidize turn black )

EL Powder craft

EL Powder: It is good to glue the shutting. Thickness. Even. Saturation

EL Powder: The viscidity is bad. daub thickness is not even.

Luminescence core

Reality light core:OD:0.95mm

Reality light core :OD:0.70mm

Reality light core :OD:0.40mm

Reality light core :OD:0.32mm~0.38mm

Luminance

220cd-300cd

120cd-150cd

65cd-85cd

50cd-70cd

Color of light

Use special PVC plastics, perviousness rate good,Color is energetic

Use routine PVC plastics ,The color is dim

***Such special PVC plastics. U.S.A research institute offers technology

Dielectric Strength

AC50V-250V

AC50V-200V

AC50V-150V

AC50V-130V

Life-span

8000Hour -10000Hour

8000Hour -10000Hour

6000Hour -8000Hour

500Hour -1000Hour

Half-Life

2500Hour~3500hour

2000Hour~3000hour

1500Hour~2500hour

100hour~300hour

Color

Color:Blue/Green/Orange/Red/Purple/Yellow /Lime/Blue green/Pink/Red glow white.. Any time will not change

The color is confused

Storage time

Biggest 2 years

Biggest  6 months

EL material (Price)

U.S.A. imports OSRAM: 600.00USD/KG

Japan : 250.00USD/kg: Chinese: 150.00USD/kg

Inverter

High-quality special-purpose INVERTER

Use inverter of the low price with poor quality

Product assurance

Bad product . Promise to replace

Bad product . There is not any commitment

***Dear customer: After you read Difference comparison table carefully. Perhaps. You have already found the answer to the difference of EL WIRE

Can help you to make correct purchase to choose !!!





1,EL Wire Characteristic:

1),Made from a new kind of electroluminescent light
2),Can offer 360 degrees of illumination
3),Life span is up to more than 10,000 hrs at the same time
4),Can be bent into any shape and tied
5),Can be cut into any length
6),High brightness, no heat, waterproof, easy for installation
7),Power inverter: DC3V-24V, AC110V-240V



2,Color of El Wire when NOT Powered:





This picture shows you the color of the El Wire outer PVC jacket when there is "NO" power to the El Wire.  Again the picture below is without power.  The reason for this picture is sometimes people after receiving their El Wire think they received a color they did not order and this color chart will let you know instantly which color we sent you.



The other reason and more important reason is sometime in your El Wire project it is important to know what color the El Wire will be when it is not powered.  Example let's say your project requires a Blue color.  And when the El Wire is "Powered" you want to see a great Blue color but when the El Wire is off you do not want to see a Blue line.  If this was the case than you would want our Blue / Green because it has a "Clear" outer jacket.







3, EL Power Consumption Amps:





EL WIRE POWER CONSUMPTION CHART

Example: In the top section we start off with the 0.9mm El Wire and here is what each Column Heading Means:

Inverter Voltage - This is the inverters input voltage

12VDC - This is under Inverter Voltage This means this is a 12VDC El Wire Inverter

MIN Feet - This is saying the inverter we tested can power a minimum of 1-Foot of El Wire

MAX Feet - This is saying the inverter we tested can power a maximum of 100-Feet of El Wire

MIN AMPS - This is the reading based on the Minimum Number of Feet the Inverter could power

MAX mA - This is the reading based on the Maximum Number of Feet the Inverter could power

WATTS - This is the reading based on the Maximum Number of Feet the Inverter could power



EL WIRE POWER CONSUMPTION CHART



0.9mm EL Wire

Inverter Voltage	MIN FEET	MAX FEET	MIN AMPS	MIN mA	MAX AMPS	MAX mA	WATTS
12VDC	1 FT	100 FT	0	0	0.3	300	3.6
12VDC	39	49	0.13	130	0.15	150	1.8
12VDC	39	49	0.15	150	0.15	150	1.8
12VDC	32	39	0.13	130	0.14	140	1.68
12VDC	32	39	0.11	110	0.12	120	1.44
12VDC	26	32	0.09	90	0.09	90	1.08
12VDC	20	26	0.08	80	0.09	90	1.08
12VDC	20	26	0.08	80	0.09	90	1.08
12VDC	20	26	0.07	70	0.08	80	0.96
12VDC	8	13	0.05	50	0.06	60	0.72
12VDC	8	13	0.22	220	0.24	240	0.72
12VDC	3	6	0.12	120	0.13	130	0.39
12VDC	1	3	0.07	70	0.09	90	0.27
12VDC	1	3	0.05	50	0.07	70	0.315
12VDC	1	3	0.02	20	0.03	30	0.36
12VDC	1	1.5	0.01	10	0.01	10	0.12
12VDC	1	1.5	0.04	40	0.05	50	0.15





2.2mm EL Wire

Inverter Voltage	MIN FEET	MAX FEET	MIN AMPS	MIN mA	MAX AMPS	MAX mA	WATTS
12VDC	1 FT	104 FT	0	0	0.28	280	3.36
12VDC	39	49	0.11	110	0.13	130	1.56
12VDC	39	49	0.13	130	0.14	140	1.68
12VDC	32	39	0.11	110	0.12	120	1.44
12VDC	32	39	0.09	90	0.1	100	1.2
12VDC	26	32	0.07	70	0.09	90	1.08
12VDC	20	26	0.07	70	0.08	80	0.96
12VDC	20	26	0.07	70	0.08	80	0.96
12VDC	20	26	0.06	60	0.07	70	0.84
12VDC	8	13	0.05	50	0.06	60	0.72
3VDC	8	13	0.19	190	0.21	210	0.63
3VDC	3	6	0.13	130	0.17	170	0.51
3VDC	1	3	0.06	60	0.09	90	0.27
4.5VDC	1	3	0.05	50	0.08	80	0.36
12VDC	1	3	0.02	20	0.03	30	0.36
12VDC	1	1.5	0.01	10	0.01	10	0.12
3VDC	1	1.5	0.05	50	0.05	50	0.15



 2.6mm EL Wire

Inverter Voltage	MIN FEET	MAX FEET	MIN AMPS	MIN mA	MAX AMPS	MAX mA	WATTS
12VDC	1 FT	52 FT	0	0	0.28	280	3.36
12VDC	19	25	0.12	120	0.13	130	1.56
12VDC	19	25	0.14	140	0.15	150	1.8
12VDC	16	20	0.12	120	0.13	130	1.56
12VDC	16	20	0.1	100	0.11	110	1.32
12VDC	13	16	0.08	80	0.09	90	1.08
12VDC	10	13	0.08	80	0.09	90	1.08
12VDC	10	13	0.08	80	0.09	90	1.08
12VDC	10	13	0.07	70	0.08	80	0.96
12VDC	4	7	0.06	60	0.07	70	0.84
3VDC	4	7	0.22	220	0.24	240	0.72
3VDC	1	3	0.12	120	0.17	170	0.51
3VDC	1	1.5	0.09	90	0.1	100	0.3
4.5VDC	1	1.5	0.07	70	0.08	80	0.36
12VDC	1	1.5	0.02	20	0.03	30	0.36
12VDC	0.5	0.5	0.01	10	0.01	10	0.12
3VDC	0.5	0.5	0.05	50	0.05	50	0.15



4,AC Inverter for EL Wire:







5,DC Inverter for EL Wire:









6, Is The Thicker El Wire Brighter Then The Thinner El Wire?

Is the thicker el wire brighter then the thinner el wire?  This is a question we are asked quite often so we decided to take a picture to show you.  What do you think?





7, Connectors - Which is the MALE Connector

Below is our Male and Female Connectors.  Please Note: ALL of our El Wire Inverters (The thing that POWERS the El Wire) has the FEMALE connector attached to it.

This means the El Wire needs to have the MALE connector soldered on.





8, EL Wire Application:

EL Wire mainly using for accessory, for decorations indoor and outdoor:





1, Automobile(Car): Install on the car cushion, seat cover, wheel steering cover, safety seat belt, instrument frame and decorate Auto inside and outside, with function of Constant light, Flash and Music control;



2, Computer: Install on computer, like case, display, keyboard, mouse cable, or twist with data cable and install inside transparent computer case for decoration;

3, Christmas gift, new year gift: Decorate the Christmas tree, Christmas card, Christmas craftwork, New Year gift etc;



4, Advertisement, entertainment: Bending letter or image of advertisement, use as decorative light on stage, casino, night club, bar;
5, Others: Flash toy, flash sunglasses, flash bracelet, flash waistband, mobile phone call flash band, flash dog collapsible, flash dog strap, flash backpack, cap, vanity, clothing, shoelace, frame(wheel) of bicycle for decoration tent, sign, traffic and fire control indication light, mine tunnel leading light.
