Focus controller
| Place of Origin | China |
|---|---|
| Brand Name | Okled |
| Model Number | LN-CONJZ-3CH-LV |
| Inquiry | |
Detailed Product Description
Summarization
Focus controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on; It has many advantages such as easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Technical parameters
● working temperature: -20-60℃
● supply voltage: DC5V, 12V , 24V optional(specify the required voltage on orders)
● output: 3 channels
● connection mode: common anode
● external dimension: L184ΧW123ΧH45 mm
● packing size: L231ΧW182ΧH56 mm
● net weight: 755g
● gross weight: 820g
● static power consumption: <1W
● output current: <4A(each channel)
● output power: 5V:<60W, 12V:<144W, 24V:<288W

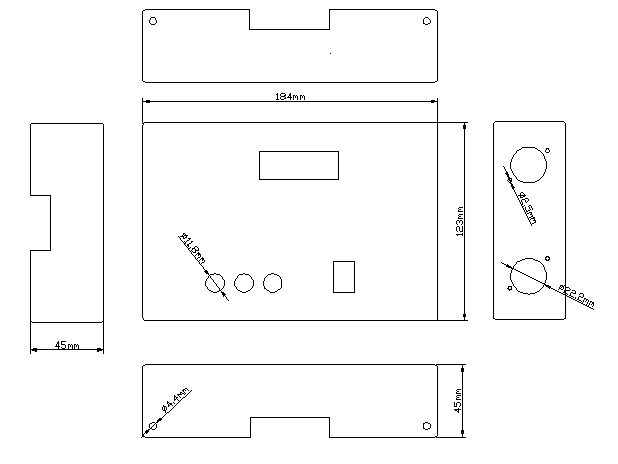

External Dimension
.png)

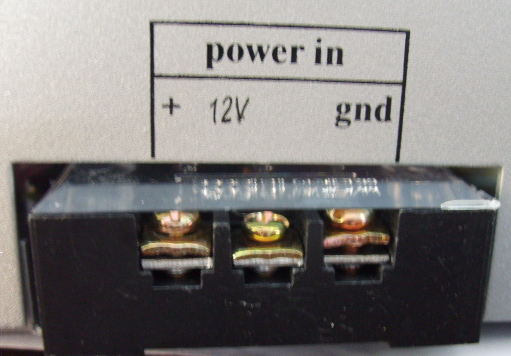

Interface Specifications Power input interface: Adopt two rows of binding posts Load output interface: Direction for Use 2. Adopt buttons and DMX ways for controlling. MODE is Mode button,each pressing,lighting color changes one time,press UP will increase the speed and vice versa. 3. The form of color changes as follows:
No. Patterns Remarks 0 Static black 1 Static red 2 Static green 3 Static yellow 4 Static blue 5 Static purple 6 Static cyan 7 Static white 8 Strobflash in whole 9 Three-color jumpy changing 10 Three color running form 11 Seven-color jumpy changing 12 Seven-color gradual changing 13 Automation 1~12.png)
.png)
Adopt binding post with screw.

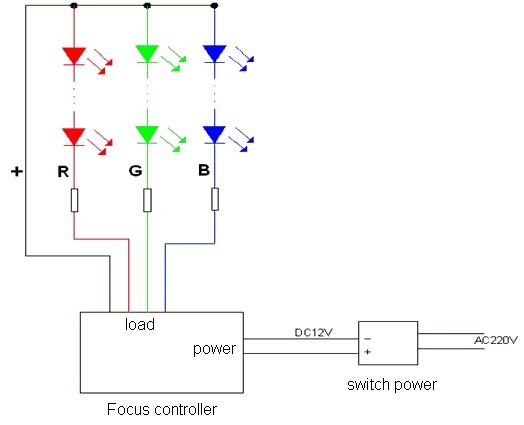

Typical Applications
.jpg)
