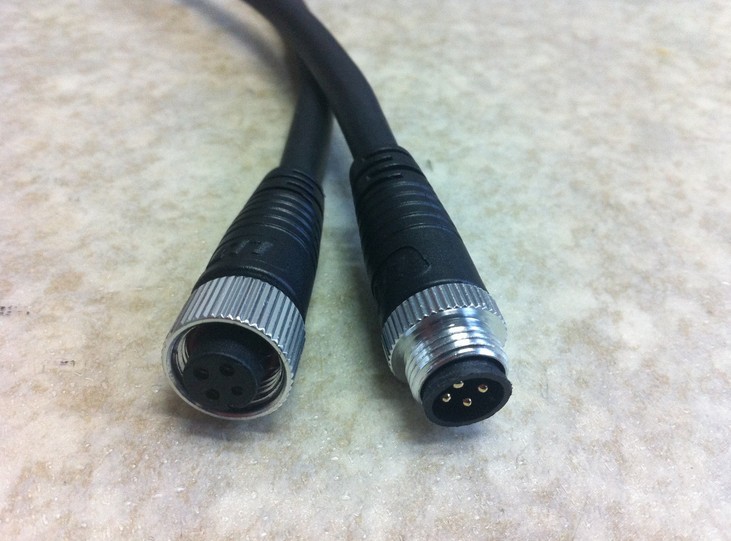

4Pin IP65 Waterproof Connector M12
|
Product name: M12 male plug female pin front loading panel mode thread PVC/Nylon material 01 series
|
|
![]()
|
![]()
|
|
|
|
Cores:2 to 8
|
|
![]()
|
|
|
|
Assembly figure
|
|
![]()
|
![]()
|
|
|
|
|
|
|
Product description
|
|
Cores
|
Model
|
Rated current
|
Rated voltage
|
Test voltage(lmin)
|
Contact resistance
|
Contact diameter
|
Max diameter
|
Shell
|
|
2Cores
|
LLT-M12-1002GMZBLV02
LLT-M12-1002GMZBLA02
|
10A
|
500V
|
1500V
|
2mΩ
|
1.5mm
|
φ10.0mm
|
PVC/Nylon
|
|
2Cores
|
LLT-M12-0502GMZBLV02
LLT-M12-0502GMZBLA02
|
5A
|
500V
|
1500V
|
5mΩ
|
1.0mm
|
φ10.0mm
|
PVC/Nylon
|
|
3Cores
|
LLT-M12-1003GMZBLV02
LLT-M12-1003GMZBLA02
|
10A
|
500V
|
1500V
|
2mΩ
|
1.5mm
|
φ10.0mm
|
PVC/Nylon
|
|
3Cores
|
LLT-M12-0503GMZBLV02
LLT-M12-0503GMZBLA02
|
5A
|
500V
|
1500V
|
5mΩ
|
1.0mm
|
φ10.0mm
|
PVC/Nylon
|
|
4Cores
|
LLT-M12-0504GMZBLV02
LLT-M12-0504GMZBLA02
|
5A
|
500V
|
1500V
|
5mΩ
|
1.0mm
|
φ10.0mm
|
PVC/Nylon
|
|
5Cores
|
LLT-M12-0505GMZBLV02
LLT-M12-0505GMZBLA02
|
5A
|
400V
|
1000V
|
5mΩ
|
1.0mm
|
φ10.0mm
|
PVC/Nylon
|
|
6Cores
|
LLT-M12-0506GMZBLV02
LLT-M12-0506GMZBLA02
|
5A
|
400V
|
1000V
|
5mΩ
|
1.0mm
|
φ10.0mm
|
PVC/Nylon
|
|
7Cores
|
LLT-M12-0507GMZBLV02
LLT-M12-0507GMZBLA02
|
5A
|
300V
|
800V
|
5mΩ
|
1.0mm
|
φ10.0mm
|
PVC/Nylon
|
|
8Cores
|
LLT-M12-0508GMZBLV02
LLT-M12-0508GMZBLA02
|
5A
|
300V
|
800V
|
5mΩ
|
1.0mm
|
φ10.0mm
|
PVC/Nylon
|
|
|
|
|
