Detailed Product Description

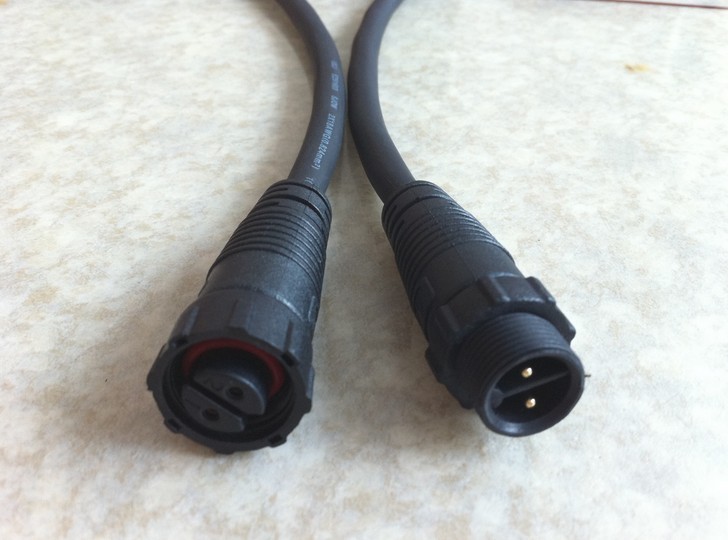

2Pin IP66 Waterproof Connector M12
|
Product name: M12 female plug male pin butt-type injection net tailless thread PVC material 02 series
|
|
![]()
|
![]()
|
![]()
|
|
|
|
Cores:2 to 3
|
|
![]()
|
|
|
|
Model
|
|
LLT-M12-0502MGZWLV02
|
LLT-M12-0502MGZWLV02
|
|
|
|
Product description
|
|
Cores
|
Model
|
Rated current
|
Rated voltage
|
Test voltage(lmin)
|
Contact resistance
|
Contact diameter
|
Max diameter
|
Shell
|
|
2Cores
|
LLT-M12-0502MGZWLV02
|
3A
|
200V
|
500V
|
3mΩ
|
0.8mm
|
φ5.0mm
|
PVC
|
|
3Cores
|
LLT-M12-0502MGZWLV02
|
3A
|
200V
|
500V
|
3mΩ
|
0.8mm
|
φ5.0mm
|
PVC
|
|
|
|
|
Part number system
|
Material and spec
|
|
![]()
|
![]()
|
|
Package Type:
1, Plastic bags;
2, Carton box;
3, Wooden box;
4, According to client's requirement
Related Pictures:
