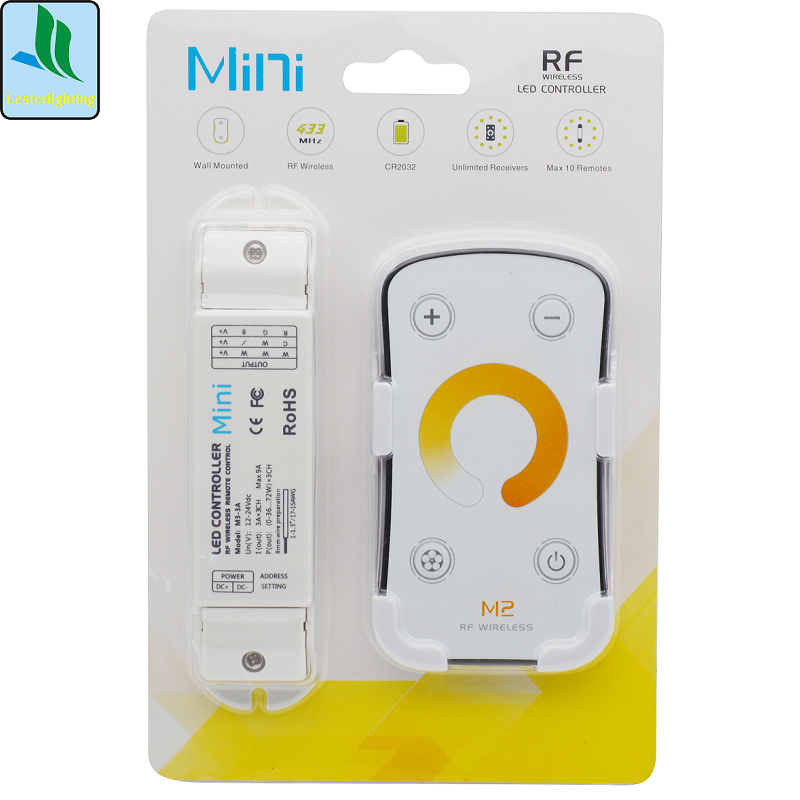

LST-Mini-2 Wireless Remote Mini Type Color Temperature Controller
| Place of Origin | shenzhen |
|---|---|
| Brand Name | Okled |
| Model Number | LST-zd-TQ-Mini-2 |
| Inquiry | |
Detailed Product Description
Product Specifications
Model number: LST-zd-TQ-Mini-2
Products name:LST-Mini-2 Wireless Remote Mini Type Color Temperature Controller
Features
Sleep Mode: When the remote unattended operation over 30s, it can automatically enter standby mode to extend batttery life. Press any of these four keys to continue.
The Learning ID Method: Remote has been matched to the receiver before leave factory, if deleted accidentally, you can learn ID as follow: Learning ID: Short Press" ID learning button" on the M3-3A receiver, the running light is on, then press any key on the remote, the running light flashed several time, activated.
Canceling ID: Press : ID learning button" on the receiver for 5 seconds.
Specificetion:
M3-3A Receiver Parameter:
Compatible Remote: M2/M5
Power Input: 12~24V DC
Max Current Load: 3AX2CH Max 6A
Max Output Power: 72W(12V) 144W(24V)
Working Temp: -30~55
Dimension: L135XW30XH30(MM)
Weight:47g
M2/M5 Remate Parameter:
Working Voltage: 3V
Working Frequency: 433.92MHz
Working Temp: -30~55
Remote Dimensions:L104XW58XH9(mm)
Remote Holder Dimensions: L108XW63XH14(mm)
Remote Weight: 42g
Package Included:
1 x RF Color Temperature Adjustable led controller
1 x Remote control(battery not included)
