MINI controller

Detailed Product Description

Summarization
        LED Mini Controller adopts the advanced micro-control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; It has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.


Technical Parameters
  ● Working temperature：-20-60 ℃
  ● Supply voltage: DC5V, 12V, 24V optional (specify the required voltage on orders)
  ● 0utput: 3 channels
  ● Connecting mode：common anode
  ● External dimension：L42.8ΧW10ΧH0.8 mm
  ● Packing size：L43ΧW11ΧH2 mm
  ● Net weight: 5 g
  ● Gross weight: 7 g
  ● Static power consumption: <0.01 W
  ● Output current: <0.08 A (each channel)
  ● Output power: 5V:<1.2 W, 12V:<2.88 W, 24V:<5.88 W

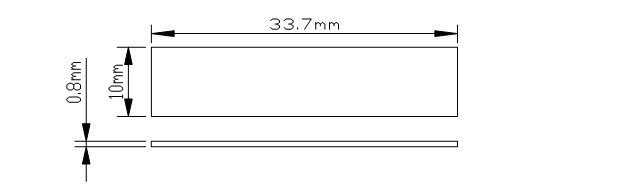

External Dimension

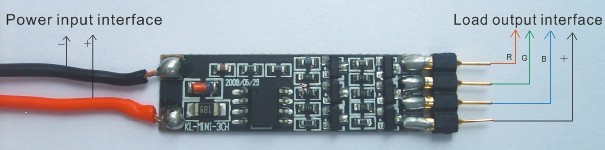

 Interface Specifications
 Power input interface and load output interface are remarked in follow picture, please refer to it.

Direction for use
 Automatically complete change after turning on the power, needn’t any setting; Please ensure short circuit can not occur between connecting wire before you turn on the power.

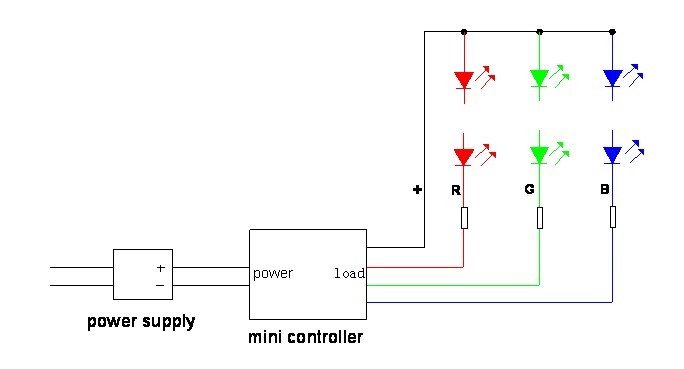

Typical Applications
