Panel 8key Controller

Detailed Product Description

Summarization

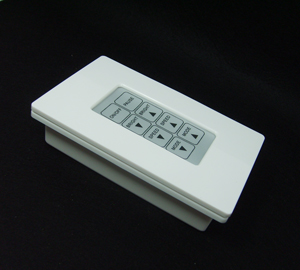

Panel 8key controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible strip light, wall washer lamp, glass curtain wall light and so on;It t has many advantages such as easy connection and simplicity to use; According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.


Technical parameters
● working temperature: -20-60 ℃
● supply voltage: DC5V, 12V ,18V, 24V < optional > ( supply voltage should be marked on order )
● output: 3 channels
● connection mode: common anode
● external dimension: L120 Χ W75 Χ H31 mm
● packing size: L145 Χ W95 Χ H50 mm
● net weight: 105 g
● gross weight: 135 g
● static power: <1W
● output current: <3A( each channel )
● output power: 5V<45W,12V<108W,24V<216W

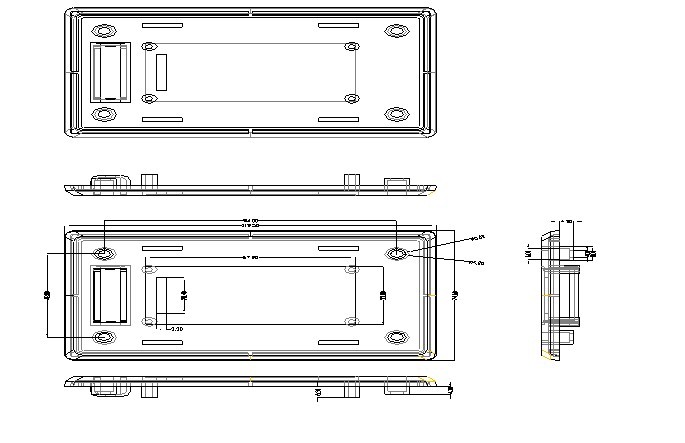

External Dimension

Direction for Use

1.  Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2.  There are eight keys on the controller panel, the funtion of each key as follows:

ON/OFF: you could turn on/off controller at any time;

PAUSE: can play or pause led changing, easy to observe the static effect of the led

BRIGHT: A brightness control button,the step of the brightness add 1 by each pressing,a totalof 256 steps;

BRIGHT: The step of the brightness subtract 1 by each pressing;

SPEED: The step of the speed change add 1 by each pressing,a total of 100 steps.

SPEED: The step of the speed change subtract 1 by each pressing.

MODE: the color change button, select up, total of 21 modes;

MODE:  the color change button, select down.

3.  Standard changes funtion as the following form:
