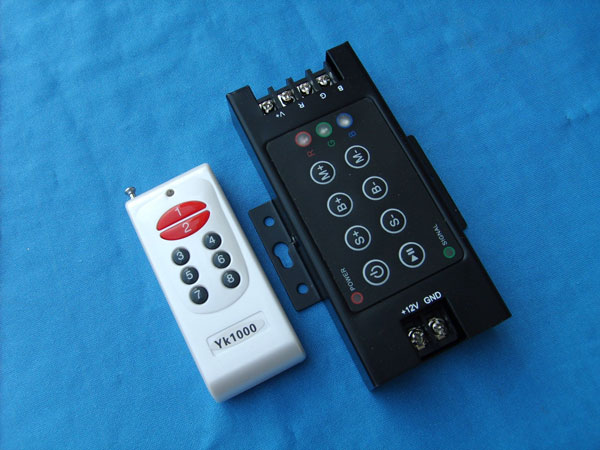

RF 8-key controller

Detailed Product Description

Summarization

   RF 8-key Audio controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. This controller adopt inner microphone to receive exterior audio signal, let the speed change along with cadence and brightness change along with the volume. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.



Technical Parameters

  Working temperature: -20-60 °C

  Supply voltage: DC5V, 12V ,18V, 24V<optional>(Order goods need marking out the required voltage)

  Output: 3 channels

  Connecting mode: common anode

  External dimension: L121ΧW53ΧH25 mm

  Packing size: L150ΧW76ΧH51 mm

  Net weight:255g

  Gross weight:285g

  Static power consumption: <1W

  Output current: <4A(each channel)

  Output power: 5V:<60W,  12V:<144W,  24V:<288W





External Dimension









Interface Specifications

  Power input interface:





 Adopt two sheath wires as connecting wires, meanwhile, Red wire→ +  Black wire→ -

  Load output interface:





   Adopt four sheath wires as connecting wires, meanwhile, White wire→ +   Red wire→R

 Green wire→G  Blue wire→B







Direction for use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Adopt film button and RF for controlling, there are 8 buttons in all, the function of each key as follows:

(1): you could turn on/off controller at any time;

(2): Play/pause button, it is convenient for you to see the static effect of led;

S+(3): press once,change speed +1, total 100 grade.

S-(4): press once,change speed -1.

B+(5): Brightness control of the output signal each press changing speed +1, total 256 grade.

B-(6): press once,change brightness  -1;

M+(7): The NO. of patterns add 1 by each pressing;(refer to the following form)

M-(8): The NO. of patterns subtract 1 by each pressing;

3. Standard changes function as the following form:

No	Patterns	Remarks
1	Static red	Brightness is adjustable, Speed is nonadjustable.
2	Static blue
3	Static purple
4	Static green
5	Static yellow
6	Static cyan
7	Static white
8	Three-color jumpy change	Speed and brightness are adjustable
9	Seven-color jumpy change
10	Three-color gradual change	Speed is adjustable.
11	Seven-color gradual change
12	Red  flash
13	Blue  flash
14	Purple flash
15	Green flash
16	Yellow flash
17	Cyan flash
18	White flash
19	R/B color alternant gradual change	Speed is adjustable, Brightness is nonadjustable.
20	B/G color alternant gradual change
21	G/R color alternant gradual change
22	Seven-color jumpy change (external signal)	Speed changes with the voice swing, brightness controlled with the volume, the higher volume is, the greater the brightness.







Typical Application
