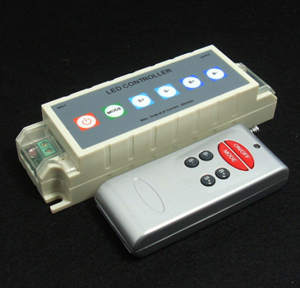

RF common controller

Detailed Product Description

Summarization

RF common controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible strip light, wall washer lamp, glass curtain wall light and so on;It t has many advantages such as easy connection and simplicity to use; According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.





Technical parameters



 working temperature: -20-60 °C

 supply voltage: DC5V, 12V ,18V, 24V < optional > ( supply voltage should be marked on order )

 output: 3 channels

 connection mode: common anode

 external dimension: L130 Χ W40 Χ H31 mm

 packing size: L140 Χ W50 Χ H60 mm

 net weight: 125g

 gross weight: 150g

 static power: <1W

 output current: <3A( each channel )

 output power: 5V<45W,12V<108W,24V<216W





External Dimension









Interface Specifications



        Power input interface:



Adopt male and female connector with screw.



        Load output interface:



Adopt male and female connector with screw.







Direction for Use

      1.  Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;



2.  There are six keys on the remote controller panel, the funtion of each key as follows:

ON/OFF: you could turn on/off controller at any time;

  MODE: the color change button,there are 21 modes of change for you to choose;

B+: A brightness control button,the step of the brightness add 1 by each pressing,a total of 256 steps;

B-: The step of the brightness subtract 1 by each pressing;

S+: The step of the speed change add 1 by each pressing,a total of 100 steps.

S-: The step of the speed change subtract 1 by each pressing.

3.  Standard changes funtion as the following form:

No	Patterns	Remarks	No	Patterns	Remarks
1	Static red	Brightness is adjustable,Speed is unadjustable.	12	Red stroboflash	Speed and Brightness are adjustable
2	Static blue		13	Blue stroboflash
3	Static purple		14	Purple stroboflash
4	Static green		15	Green stroboflash
5	Static yellow		16	Yellow stroboflash
6	Static cyan		17	Cycan stroboflash
7	Static white		18	White stroboflash
8	Three-color jumpy changing	Speed and brightness are adjustable	19	R/B crossfade	Speed is adjustable, brightness is unadjustable
9	Seven-color jumpy changing		20	B/G crossfade
10	Three-color gradual changing	Speed is adjustable,brightness is unadjustable	21	G/R crossfade
11	Seven-color gradual changing
