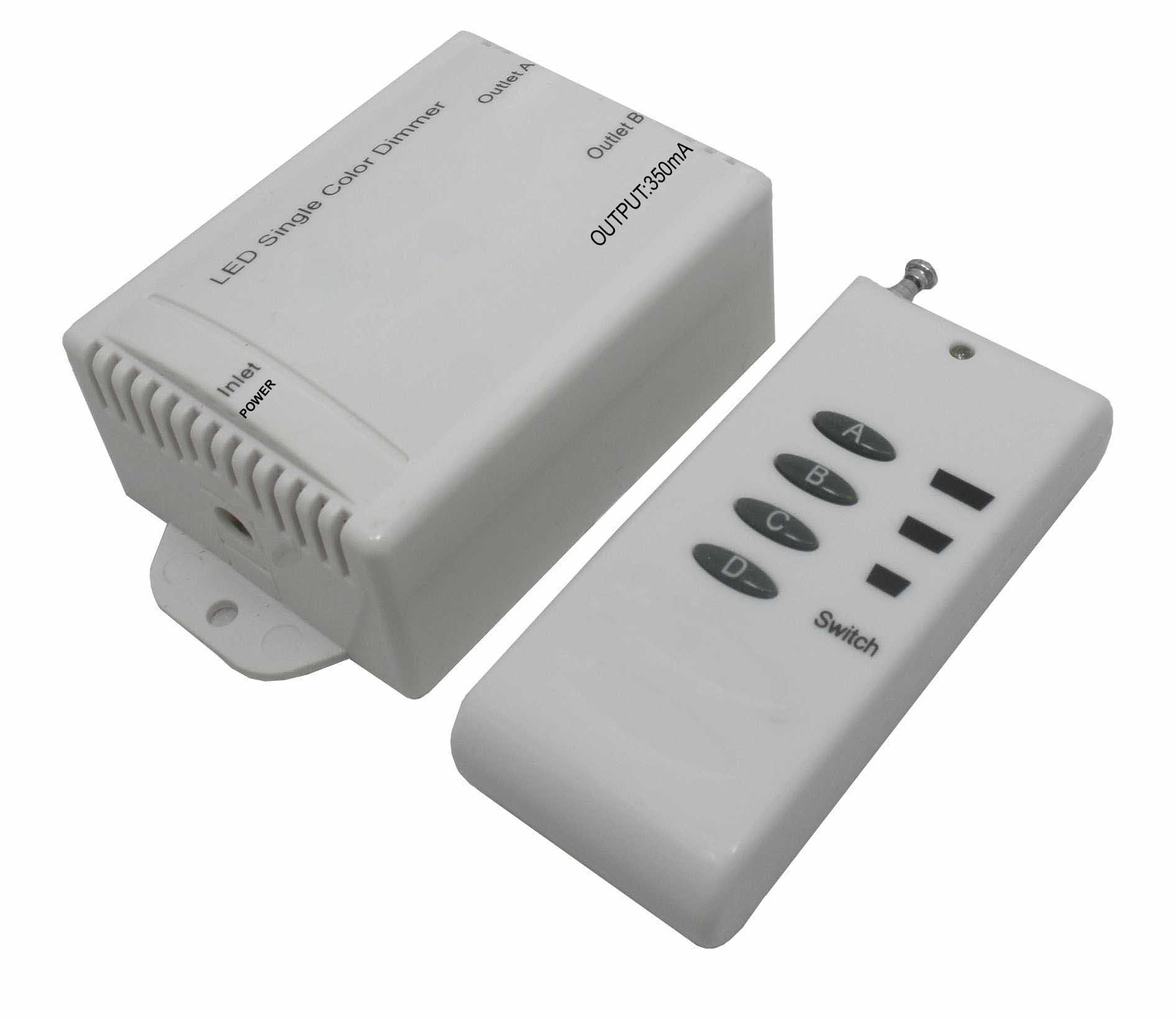

RF Constant Current Dimmer

Detailed Product Description

Summarization
     RF controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers.


Technical parameters
● working temperature:-20-60℃
● supply voltage:：DC5V, 6V, 12V,24V < optional > ( supply voltage should be marked on order )
● output: 2 channels
● transmit and receive frequency：433.92Mhz
● external dimension:：L74ΧW54ΧH29 mm
● packing size：L122ΧW85ΧH42 mm
● net weight:： 90g
● gross weight:： 120g
●Static power consumption：<1W
● output current：<350mA（each channel）
●output power：5V:<3.5W, 12V:<8.4W, 24V:<16.8W
