Product Specifications

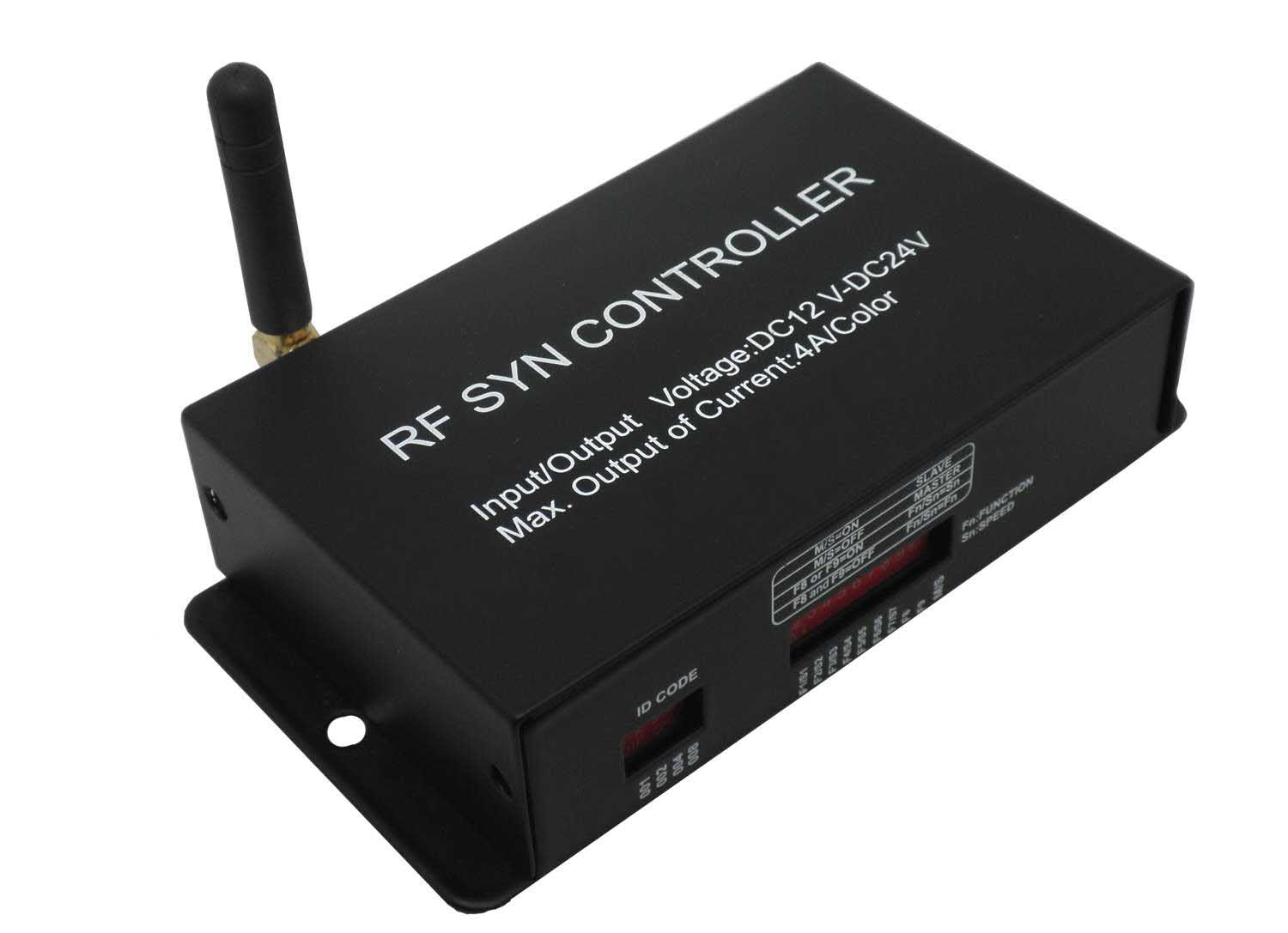

NAME: RF Controller
MODEL: LN-CONSYN-RFxB(T)-3CH-LV
Master controller Slave controller
1,Summarization
Wireless synchronization controller is used to control full-color RGB LED strip the new controller, the controller can select the DIP switch on the communications frequency, so as to achieve the same frequency as the primary communication, the effect of changes synchronized from the controller. Set the dial code for each controller can be in the main, from the control function of conversion.Lord, from the data transmission between the controller by wireless means, its easy to use, no signal cable between the controller, therefore, particularly suitable for the alignment between the controller inconvenient occasions. The distance wireless transceiver and controller work related to the environment, indoors, 20 to 50 meters communication distance is a stable and efficient, open air environment, the effective distance is farther.
2,Master controller technical parameters
working temperature | -20-60°C |
supply voltage | DC12V |
grey grades | 256 |
Connecting mode | common anode |
Communication frequency | 433.05~434.79MHz |
output | 3 channels |
external dimension | L126×W65×H30mm |
Packing Size | L168ΧW133ΧH50 MM |
Net weight | 249g |
Gross weight | 302g |
static power consumption | <1W |
Output current | <4A(each channel) |
Output power | 12V:<144W |
Slave controller technical parameters
working temperature | -20-60°C |
supply voltage | DC12V |
grey grades | 256 |
Connecting mode | common anode |
Communication frequency | 433.05~434.79MHz |
output | 3 channels |
external dimension | L126×W65×H30mm |
Packing size | L133xW70xH35mm |
static power consumption | <1W |
Output current | <4A(each channel) |
Output power | 12V:<144W |
External Dimension
Master controller
Slave controller
Interface Specifications of Master controller
Power input and Load output interface:
Power input is DC12V, output is RGB signal, lamps adopt common anode connection.The interfaces from left to right are: B, G, R, COMM, power supply positive (+), power negative (-)
Button Function:
Mode: mode switch button, a total of 11 modes;
Para: It is used for setting the parameters, press for one time, you can set the speed; press for two times, you can set the brightness, setting ranges from 0 to 99; press for three times, you can set the frequency, frequency setting ranges from 0 to 15;
Up: It is used for increasing the parameters, you can increase the corresponding values;
Down: It is used for reducing the parameters, you can reduce the corresponding values;
The key-press functions of remote controller are shown below in accordance with the key position order:
turn on/off load |
pause |
three-color jumpy changing |
three-color gradually changing |
seven-color gradually changing |
seven-color jumpy changing |
static red |
static green |
static blue |
static purple |
static cyan |
static yellow |
static white |
parameter increasing |
parameter reducing |
Interface Specifications of Slave controller
Power input and Load output interface:
Power input is DC12V, output is RGB signal, lamps adopt common anode connection.The interfaces from left to right are: B, G, R, COMM, power supply positive (+), power negative (-)
DIP switch for select the frequenct and mode:
DIP switch instruction for selecting the frequency:
Total 4 DIPs, you can choose 15 ID codes, the output mode of slave controller will be in synchrony with the maste controller which has the same frequency with slave controller.
DIP switch instruction for selecting the mode:
Total 10 DIPs, screen printing on the DIP switch are DIP codes, screen printing on the shell is the represent value when corresponding DIP switch is pressed ( It is used for selecting the speed in the jumpy and gradually changing). The speed value is the sum of all the values which corresponding DIP switch is pressed. In static mode, if more than one DIP are pressed, only the mode that the DIP with the smallest DIP code represents for is valid. When the tenth button not pressed, it is the built-in function mode, otherwise it's the slave control mode.
Functions are shown as the below table:
Direction for Use
1. Connect the signal wire at first, and then the load wire, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Slave controllers around should be set up around the master controller;
3, The effective distance of the controller is related to the working environment. The effective distance indoors is 20 to 50 meters, the more spacious outdoor environment, the farther of the effective distance
Typical Applications
Note: a mster controller is necessary within the same working area.
