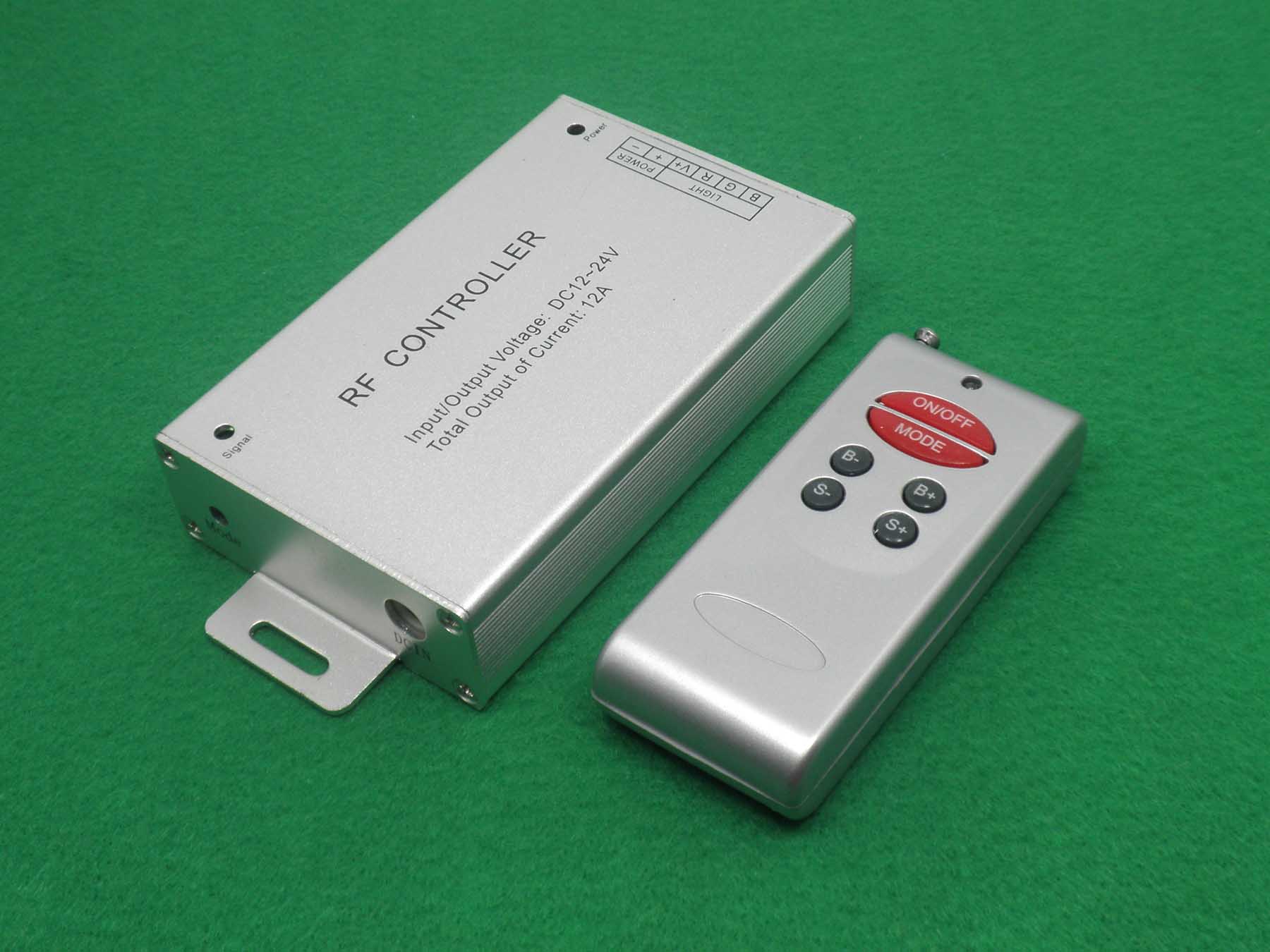

RF Controller(Aluminum version)

Detailed Product Description

Summarization
RF controller adopts the advanced micro control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time,it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.


Technical parameters
   ● Working temperature: -20-60 ℃
   ● Supply voltage: DC5V, 12V, 18V, 24V <optional> (for orders specify voltage)
   ● Output: 3 channels
   ● Connectiing mode: common anode
   ● Transmission/Receiving frequency: 315 Mhz
   ● External dimension: L128 Χ W64 Χ H24 mm
   ● Packing size: L145 Χ W95 Χ H50mm
   ● Net weight: 185g
   ● Gross weight: 215g
   ● Static power consumption: <1 W
   ● Output current: <4 A (each channel)
   ● Output power: 5 V: <60W, 12V: <144W, 24V: <288W

External Dimension

Interface Specifications

          Power input interface ( the first way ):

Adopt conventional DC power Transposon as power input interface, and equip with plug-DC

         Power input interface ( the second way ):

Adopt male and female connector with screw.

 Load output interface:

  Adopt male and female connector with screw.

Direction for Use

1.  Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2.  There are six keys on the remote controller panel, the funtion of each key as follows:

ON/OFF: you could turn on/off controller at any time;

  MODE: the color change button,there are 21 modes of change for you to choose;

B+: A brightness control button,the step of the brightness add 1 by each pressing,a total of 256 steps;

B-: The step of the brightness subtract 1 by each pressing;

S+: The step of the speed change add 1 by each pressing,a total of 100 steps.

S-: The step of the speed change subtract 1 by each pressing.

3. Standard changes funtion as the following form:

Typical Applications

The first circuit diagram:

The second circuit diagram:
