RGB Amplifier(Aluminum version)

Detailed Product Description

Summarization
       RGB amplifier applies to all the voltage-controlled LED controller in our company,it can receives PWM(Pulse Width Modulation), each time add one RGB amplifier, the connecting number of led will be more than twice, in theory, numerous RGB amplifiers can be connected.


 Technical parameters
● working temperature: -20-60℃
● supply voltage: DC5V, 12V ,18V, 24V optional（Specify the required voltage on order form）
● output: 3 channels
● connection mode: common anode
● external dimension:L105ΧW65ΧH25mm
● packing size: L122ΧW85ΧH42mm
● net weight: 115g
● gross weight: 145g
● static power consumption: <1W
● output current:<4A(each channel)
● output power: 5V:<60W, 12V:<144W, 24V:<288W

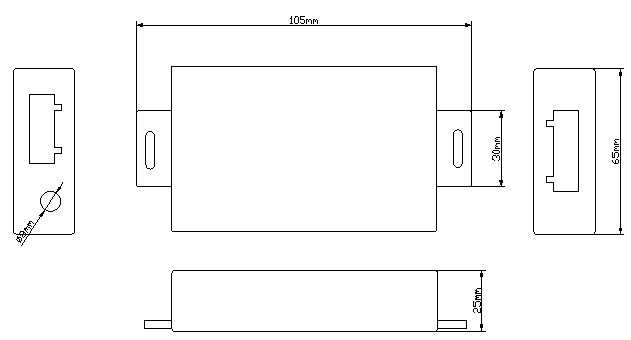

External Dimension

Interface Specifications

 power input interface1:

Adopt conventional DC power transposon as power input interface.

power input interface2:

Adopt male and female connector with screw.

signal output interface:

Adopt male and female connector with screw.

signal input interface:

Direction for Use

    according to the silk-screen prompts on the panel of RGB amplifier, to connect input and output signal wires in order to ensure short circuit can not occur between wires,and then connect power for RGB amplifier,and RGB amplifier goes hand in hand with LED controller,please refer to the following < Typical applications>.

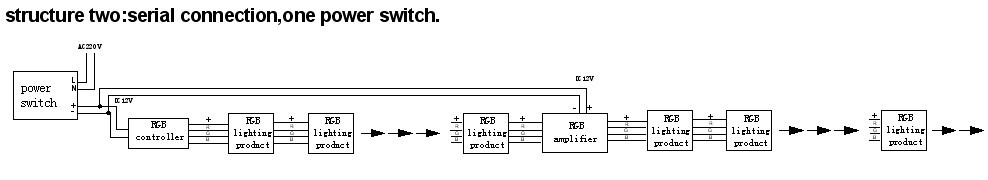

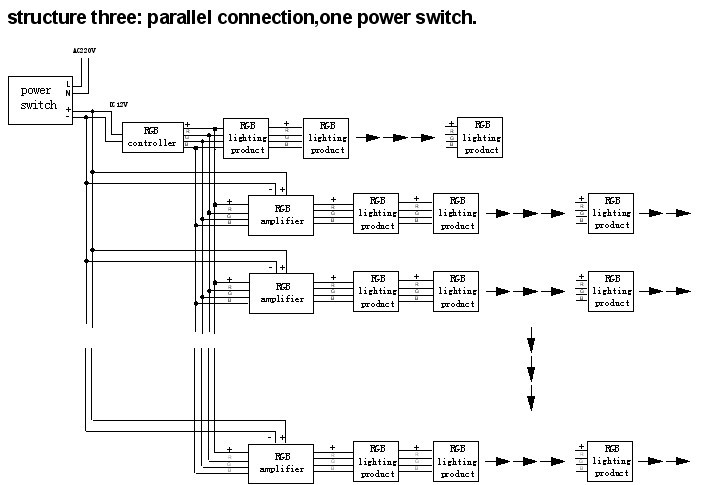

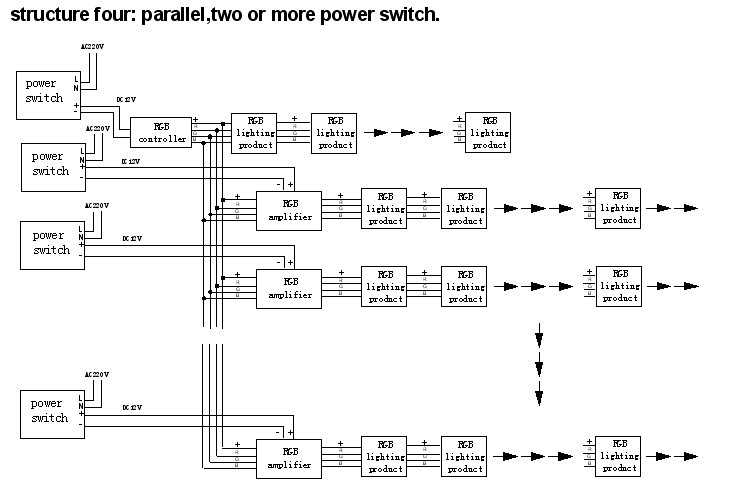

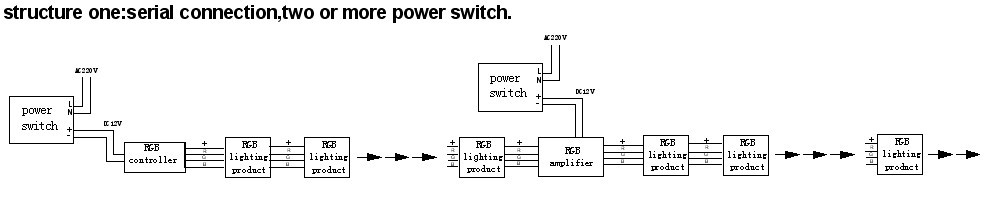

Technical Application
