RGB IR MUSIC CONTROLLER

Detailed Product Description

RGB IR MUSICCONTROLLER

This manual is the part of this product. It contains important information aboutthe operation and handling.
Make sure even if the product to third partiesProfessional secrecy. Always keep the manual for future reference!
Use only inclosed rooms, not inoutdoor. Contact withMoisture, eg.in the bathroom, must be avoided.Use like thedescriptionabove will damage the product andthis may bedanger inshort circuit, fire, electric shock, etc.. TheProduct may be changed or modified and the functionwill not be normal!


The safety note!
Batteries should not be treated as household waste. For more information on disposalbe obtained from the city office, waste disposal service or the shop where theProduct purchased.


Safety
Damages caused by failure to comply with these instructions will invalidateWarranty! For consequential damages, the manufacturer accepts no liabilityto property or personal injury caused by improper use or failure ofSafety is caused. In such cases, the warranty is voided!
Security and certification (CE) areunauthorized conversion and / or modificationthe device is prohibited.
The power supply must be used in the technical data specified values correspond.
To makea proper start,please follow the instructions.When setting up,make sure that the product cable is not pinched or sharpedges arenotdamaged.Keepthe unit away fromhigh temperature, strong vibrations, or moisture.


Commissioning

To ensure proper installation, you must read thisManual with the safety instructions thoroughly and carefullybefore using!


Maintenance

Periodically review the technical safety of the device, such as damaged cables orof the case.
If it can be assumed that safe operation is no longer possible, then the device outand removed from service and secured against accidental use. Power plug from the socket draw!
It can be assumed that safe operation is no longer possible, if the appliance hasthe device no longer works and

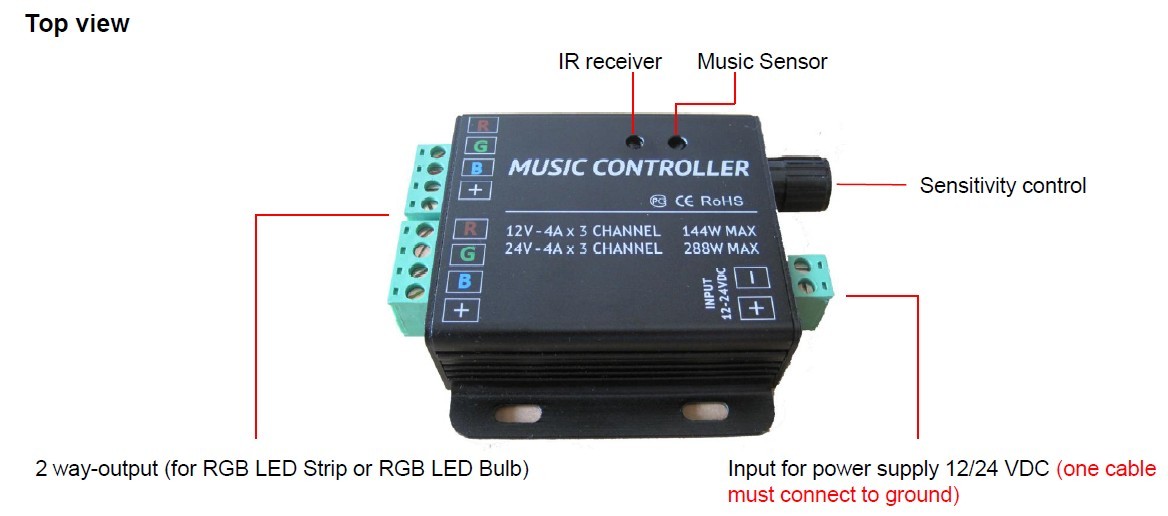

after prolonged storage under unfavorable conditions, or after majortransport stressclose them as their first LED-Strip on the controller. To prevent a short circuit, the power adapter must be connected in the laststep. Power supply: 12V/24VDC Power Supplyor battery.

MEMORY FUNCTION : The Controller will keep the last mode in memory by power switch ON/ OFF

Technical data:



The controller will keep the last mode in memory by  power switch ON/ OFF
Operating temperature: -20 °C to + 45 °C
Working voltage: 12/24V DC
Output: 2 channels (RGB)
Control variant: common anode

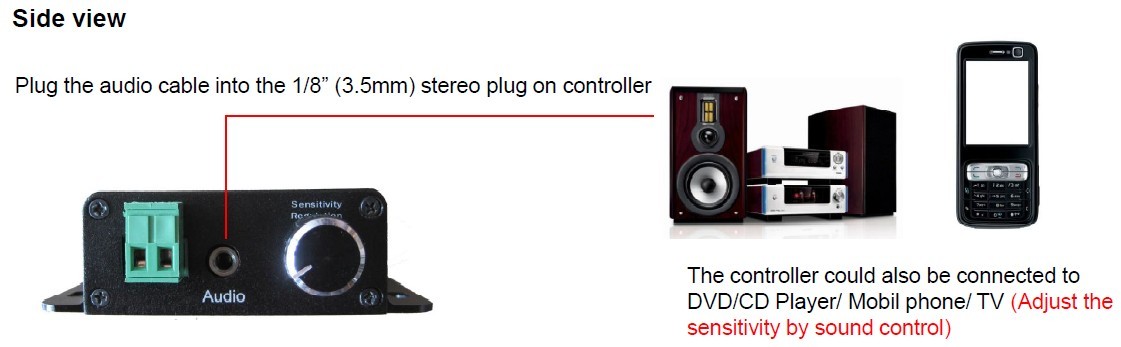

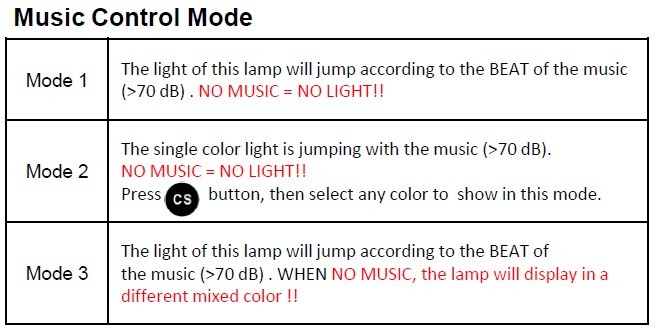

Sound Control:> 60 dB
Output current: max.12A
Maximum output power (for 12V Input): 144W
Maximum output power (for 24V Input): 288W

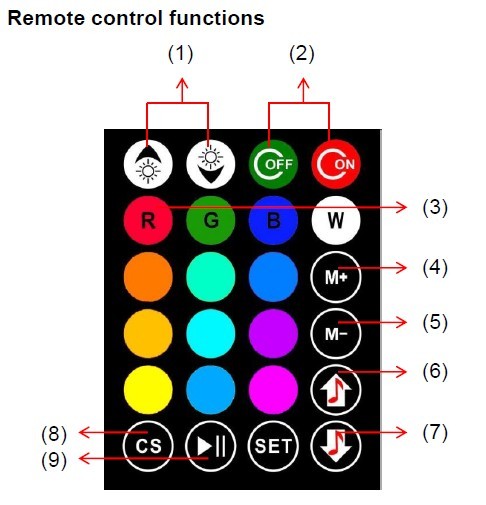

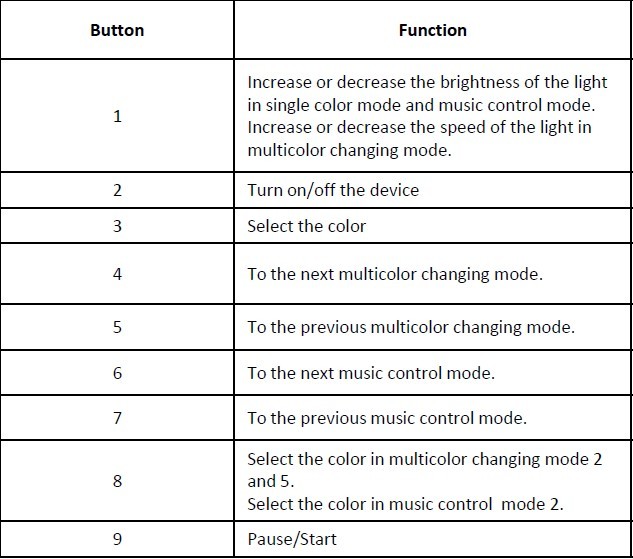

IR remote control

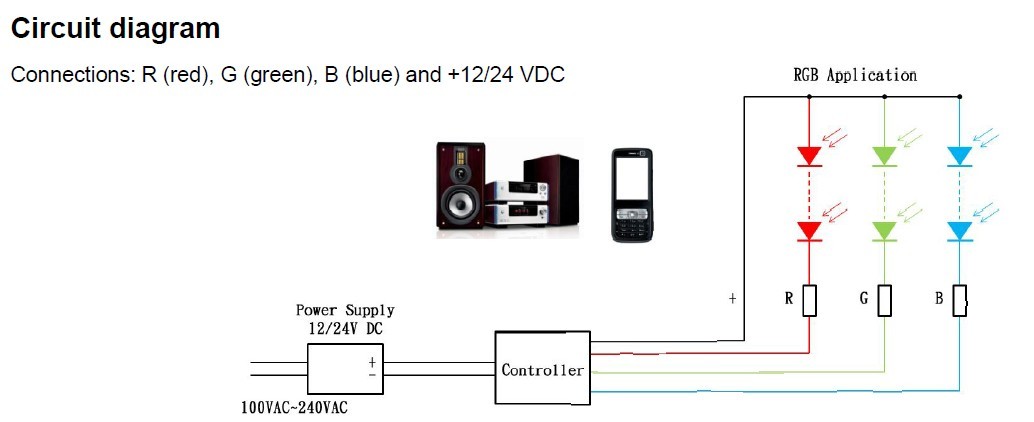

For control of RGB LED RGB strips or bulbs with 12/24VDC operating voltage

Please note that the power supply is sufficient to the controller.
Rule of thumb: Power consumption of the RGB applications (such as RGB-Strip) + 100mA for the controller.
