Sliding Type Dimmer

Detailed Product Description

Summarization

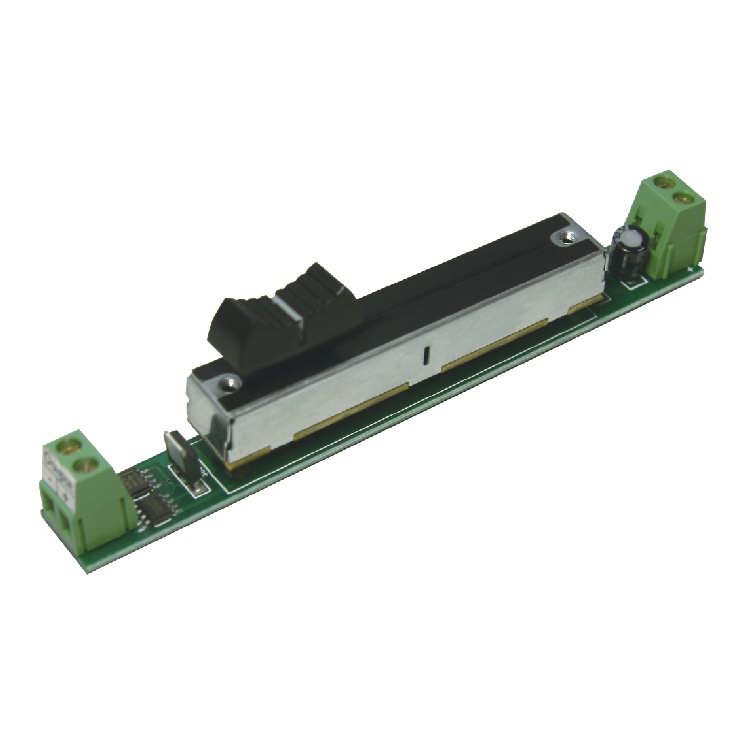

Sliding Type Dimmer is a kind of controller that can realize dimming steplessly,it adopts sliding control by right-and-left sliding, users can be based on actual needs to adjust light brightness in the right place.


Technical Parameters
● working temperature: -20-60℃
● supply voltage: DC5V, 6V ,12V, 24V optional（Specify the required voltage on order form）
● output: 1 channel
● external dimension: L123ΧW14ΧH26mm
● packing size: L150ΧW20ΧH50mm
● net weight: 25g
● gross weight: 40g
● static power consumption: <1W
● output current: <4A
● output power: 5V:<20W 6V:<24W 12V:<48W 24V:<96W

External Dimension

Interface Specification

          Power input interface:

                        Adopt 2-pin binding post with screw.

Load output interface:

                        Adopt 2-pin binding post with screw.

Direction for Use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Adopt right-and-left sliding control and its function as follows:

       Sliding to the right, the brightness gradually brighten,sliding to the far right, the brightness is the greatest.

 Sliding to the left, the light dimmed gradually, sliding to the far left, turn off lights.

Typical Application
