Touch LED Controller
| Place of Origin | China |
|---|---|
| Brand Name | Okled |
| Model Number | LN-CON-TRF8B(SJ)-3CH-LV |
| Inquiry | |
Detailed Product Description
Summarization
This product is a novel LED controller developed by our company which can realize multistage touch dimmer. Adopting advanced touch design, through the panel controller combined with touch remote way, realize flexible control. Touch remote has good performance, beautiful, fashion, easy to use. This product suit for every occasions, such as: point light source, flexible strip, wall washer lamp, glass curtain wall light and such lighting controller.
Main feature
①Touch-button, ultrathin, light quality, protable.
②Touch-key count up to 64, up to 64 kinds of mode function, small volume and more function of button .
③Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.
④Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life.
Technical Parameters
Controller
working temperature: -20
supply voltage: DC5V,12V, 24V optional(specify the required voltage on order form)
output: 3 channels
connection mode: common anode
external dimension: L89ΧW70ΧH
packing size: L145ΧW95ΧH
net weight:
gross weight:
output current: ≤
output power: 5V:<60W, 12V:<144W, 24V:<288W
Touch remote
working temperature: -20
power supply mode: 28*
supply voltage: 12V
static power consumption: 0.036mW
standby current: 3uA
work current: 300uA
emission current: 12mA
remote distance:
standby time: 6 months
Panel controller mode choice change as follows:
|
Mode number |
Function |
Remark |
Mode number |
Function |
Remark |
|
1 |
yellow |
Brightness is adjustable, Speed is unadjustable |
11 |
cyan |
Brightness is adjustable, Speed is unadjustable |
|
2 |
orange |
12 |
light green |
||
|
3 |
red |
13 |
green |
||
|
4 |
deep red |
14 |
Yellow-green |
||
|
5 |
pink |
15 |
light yellow |
||
|
6 |
purple |
16 |
Three color jumpy changing |
Speed is adjustable, brightness is unadjustable |
|
|
7 |
bluish violet |
17 |
Three color gradual changing |
||
|
8 |
blue |
18 |
Seven color jumpy changing |
||
|
9 |
light blue |
19 |
Seven color gradual changing |
||
|
10 |
azure |
|
|
Touch remote M key mode changes as follows:

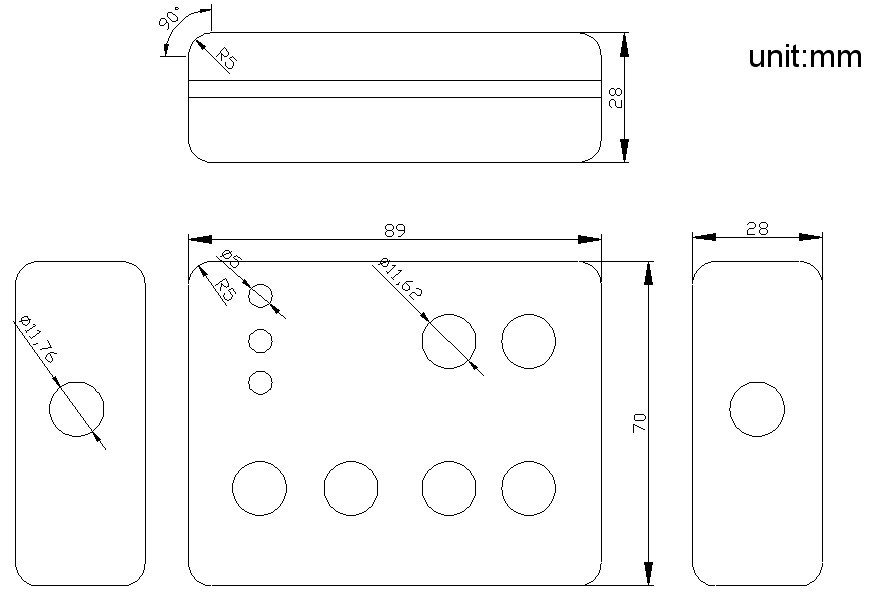

Controller External Dimension:
.jpg)

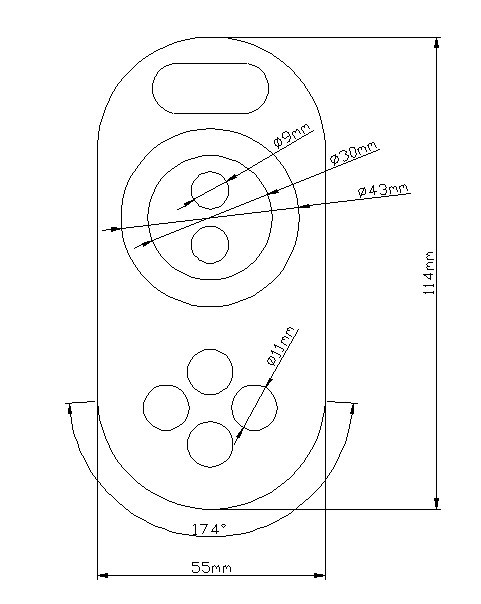

Remote External Dimension:
.jpg)
.jpg)
Adopt two sheath wires as connecting wires, meanwhile, Red→ + Black→ -
Load output interface:
.jpg)
Adopt four sheath wires as connecting wires, meanwhile, White wire → + Red wire →R
Green wire →G Blue wire →B

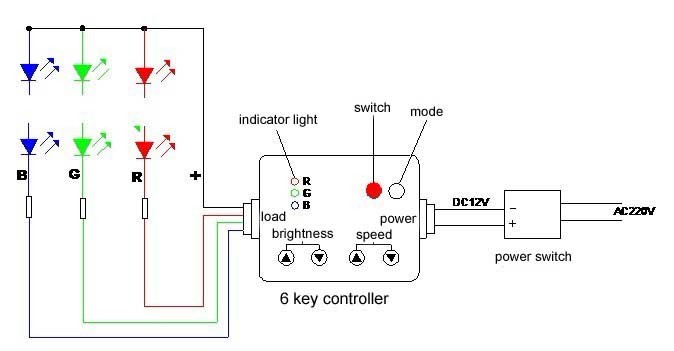

Typical Application
.jpg)
Remarks:
1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2, Power supply voltage range is DC12~24V, more than voltage range maybe will burnout the controller.
3, Touch remote when not use for a long time, suggest to take down the battery.
Interface Specification
|
Mode number |
function |
remarks |
|
1 |
red |
Brightness is adjustable, Speed is unadjustable |
|
2 |
green |
|
|
3 |
blue |
|
|
4 |
yellow |
|
|
5 |
purple |
|
|
6 |
cyan |
|
|
7 |
white |
|
|
8 |
Three color jumpy changing |
Speed is adjustable, brightness is unadjustable |
|
9 |
Three color gradual changing |
|
|
10 |
Seven color jumpy changing |
|
|
11 |
Seven color gradual changing |
Controller instruction:
1, Controller panel have 6 buttons, and the function as follows:
: you can turn on/off controller output at any time;
: B-, the output signal brightness control button, every time you press this button, the brightness series minus 1, altogether 256 levels;
2, The RGB indicator light on panel is the currently selected color mode.
Remote instruction:
1, Touch remote have 64 touch key, each keys function below:
:ON，turn on controller output at any time.
:OFF，turn off controller output at any time.
:Mode choice key，every time you press this button, the change style minus 1.
:the output signal brightness control，very time you press this button, the brightness series add 1, altogether 256 levels.
:the output signal brightness control，very time you press this button, the brightness series minus 1, altogether 256 levels.
:the output signal speed control，very time you press this button, the speed series add 1, altogether 256 levels.
：the output signal speed control，very time you press this button, the speed series minus 1, altogether 100 levels.
: Color pulley touch button, static mode choose button, up to 60 touch points.
this button have 2 functions:
①static color choose button, when current control mode is the mode of M key, if you want to realize static color ,can press this button.
②pulley color choose button, can choose from 60 kinds of static mode(the color from pulley).
2, Power supply management: stop to use the remote more than 20s, the remote will enter the
standby state (untouchable state), to extend the battery life; slightly shake once, then
the remote will come back to the normal working state (touchable state).
3, Indicator light instruction:
①The remote is in working mode (touchable) when the PWR is bright, PWR is off, then means the remote is in standby state (slightly shake once, then it can touch normally);
②RF is bright, that means detected touch button, off means there is no touch button can press.
