Touch LED Controller
| Place of Origin | China |
|---|---|
| Brand Name | Okled |
| Model Number | LN-CON-TRF8B (C)-3CH-XV |
| Inquiry | |
Detailed Product Description
Summarization
This product is a novel LED controller developed by our company which can realize multistage touch dimmer. Adopting advanced touch design, through the panel controller combined with touch remote way, realize flexible control. Touch remote has good performance, beautiful, fashion, easy to use. This product suit for every occasions, such as: point light source, flexible strip, wall washer lamp, glass curtain wall light and such lighting controller.
Main feature
①Touch-button, ultrathin, light quality, protable.
②Touch-key count up to 64, up to 64 kinds of mode function, small volume , more key funcation.
③Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.
④Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life
Technical Parameters Controller ● working temperature: -20 ● supply voltage: DC5V, 12V ,18V, 24V < optional > ( supply voltage should be marked on order ) ● output: 3 channels ● connection mode: common anode ● external dimension: L130 Χ W40 Χ H ● packing size: L140 Χ W50 Χ H ● net weight: ● gross weight: ● static power: <1W ● output current: < ● output power: 5V<45W,12V<108W,24V<216W Touch remote ● working temperature: -20 ● power supply mode: AAA*3 battery ● supply voltage: 12V ● static power consumption: 0.015mW ● standby current: 3uA ● work current: 300uA ● emission current: 10mA ● remote distance: ● standby time: 6 months controller mode choice change as follows:
Mode number Function Remark 1 Static red brightness is adjustable， Speed is unadjustable 2 Static green 3 Static blue 4 Static yellow 5 Static purple 6 Static blue-green 7 Static white 8 Three color jumpy changing Speed is adjustable, brightness is unadjustable 9 Three color gradual changing Speed is adjustable, brightness is unadjustable 10 Seven color jumpy changing Speed is adjustable, brightness is unadjustable 11 Seven color gradual changing Speed is adjustable, brightness is unadjustable
Controller instruction:
1.Controller panel have 6 buttons, and the function as follows:
ON/OFF: you could turn on/off controller at any time;
MODE: the color change button,there are 21 modes of change for you to choose;
B+: A brightness control button,the grade of the brightness add 1 by each pressing,a total of 100 grades;
B-: The grade of the brightness subtract 1 by each pressing;
S+: The grade of the speed change add 1 by each pressing,a total of 100 grades.
S-: The grade of the speed change subtract 1 by each pressing.
Remote instruction:
1. Touch remote have 64 touch key, each keys function below:
：you can turn on/off controller output at any time;
：pause key，on the dynamic mode, you can make the controller to stop the
current state now；
：this key have two functions:
①M+ is mode choose key, so when the current control mode is pulley mode(color), if you want to realize the mode(color) of M+ key, can press this button.
②M+ is mode switch key, so when the current control mode is “M” key mode, can press this button to switch the mode(color) which state in the M key mode table.
①M- is mode choose key, so when the current control mode is pulley mode(color), if you want to realize the mode(color) of M- key, can press this button.
②M- is mode switch key, so when the current control mode is “M” key mode, can press this button to switch the mode(color) which state in the M key mode table.
brightness series add 1, altogether 100 levels;
brightness series minus 1, altogether 100 levels;
speed series add 1, altogether 100 levels;
speed series minus 1, altogether 100 levels;
The button has two functions:
①Pulley static color choice key, so when the current control mode is M key mode
(color), if must realize pulley static color, can press this key.
②Pulley color switch key, can change from 60 kinds of static colors (as the pulley
shown))
2.Power supply management: stop to use the remote more than 20s, the remote will enter the
standby state (untouchable state), to extend the battery life; slightly shake once, then
the remote will come back to the normal working state (touchable state).
3. Indicator light instruction:
①The remote is in working mode (touchable) when the PWR is bright, PWR is off, then means the remote is in standby state (slightly shake once, then it can touch normally);
②RF is bright, that means detected touch button, off means there is no touch button can press.

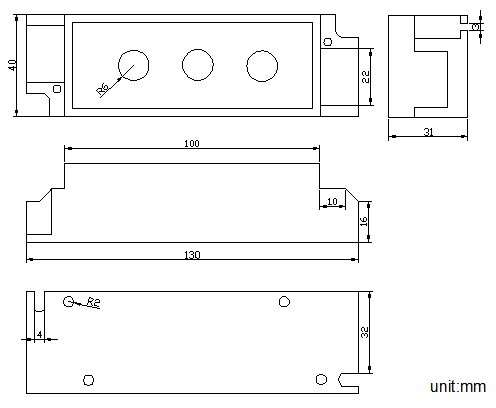

Controller External Dimension:
.jpg)

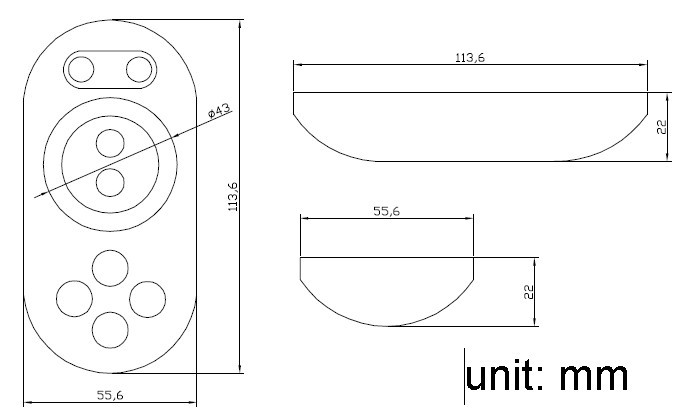

Remote External Dimension:
.jpg)
Interface Specification

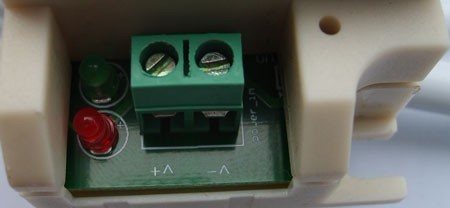

Power input interface:
Adopt male and female connector with screw.

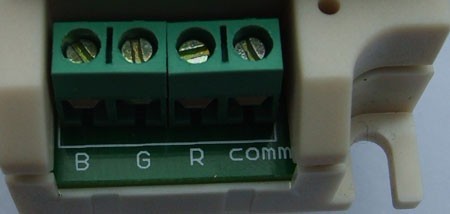

Load output interface:
.jpg)
Adopt male and female connector with screw.
.jpg)

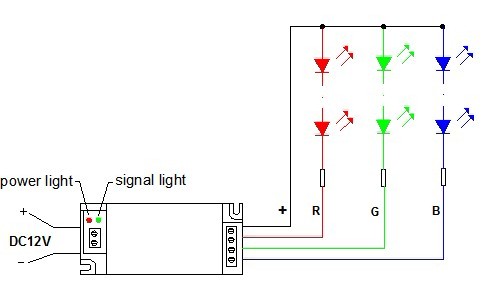

Typical Application
.jpg)
Remarks: 1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power； 2, Power supply voltage range is DC12~24V, more than voltage range maybe will burnout the controller. 3, Touch remote when not use for a long time, suggest to take down the battery.
