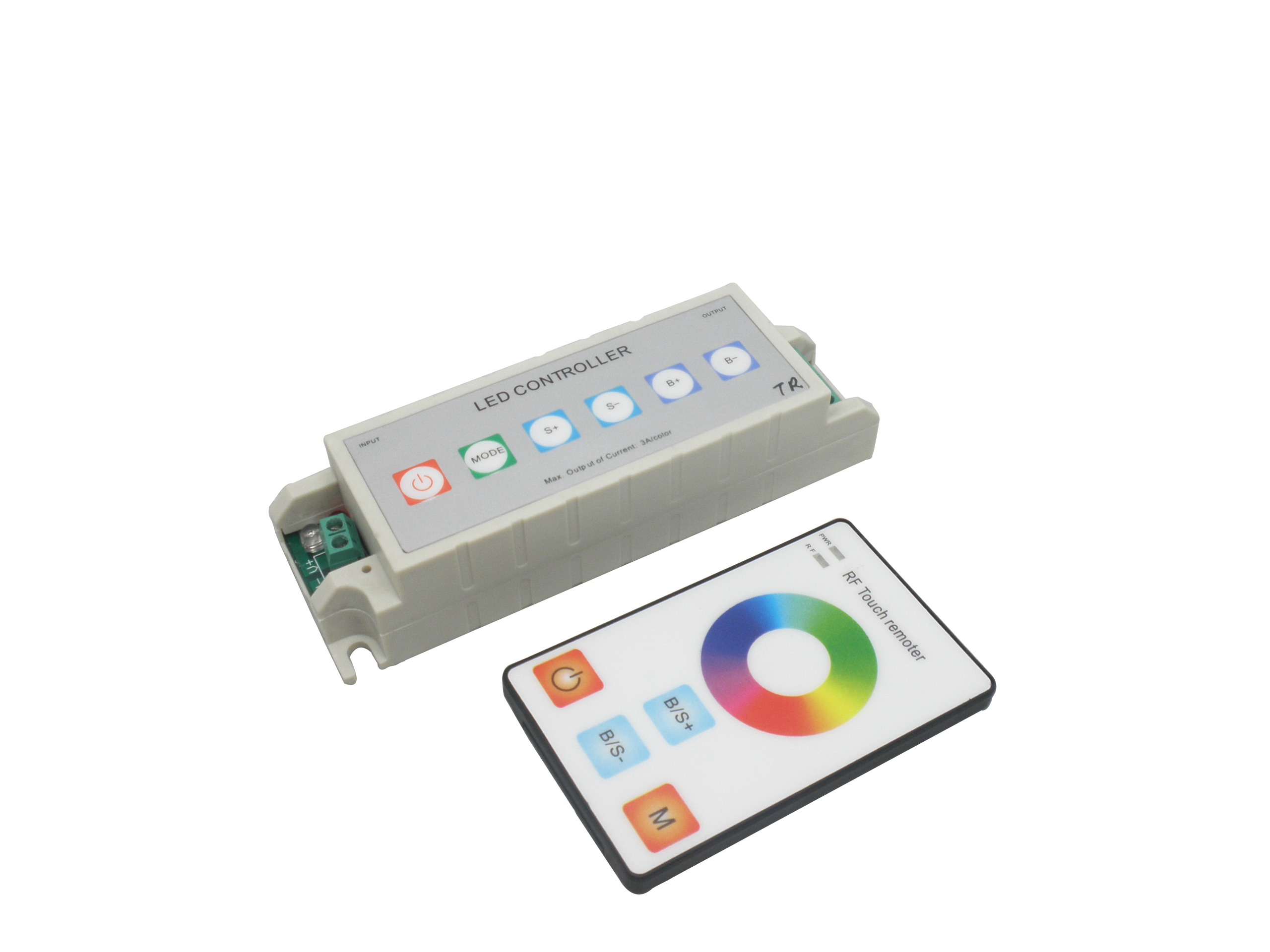

Touch LED Controller

This product is a novel LED controller developed by our company which can realize multistage touch dimmer. Adopting advanced touch design, through the panel controller combined with touch remote way, realize flexible control. Touch remote has good performance, beautiful, fashion, easy to use. This product suit for every occasions, such as: point light source, flexible strip, wall washer lamp, glass curtain wall light and such lighting controller.



①Touch-button, ultrathin, light quality, protable.

②Touch-key count up to 64, up to 64 kinds of mode function, small volume , more key funcation.

③Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.

④Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life.

● working temperature: -20-60 ℃

   ● supply voltage: DC5V, 12V ,18V, 24V < optional > ( supply voltage should be marked on order )

● output: 3 channels

● connection mode: common anode

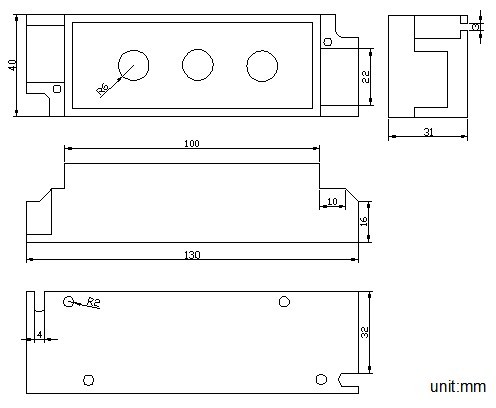

● external dimension: L130 Χ W40 Χ H31 mm

● packing size: L140 Χ W50 Χ H60 mm

● net weight: 125g

● gross weight: 150g

● static power: <1W

● output current: <3A( each channel )

● output power: 5V<45W,12V<108W,24V<216W

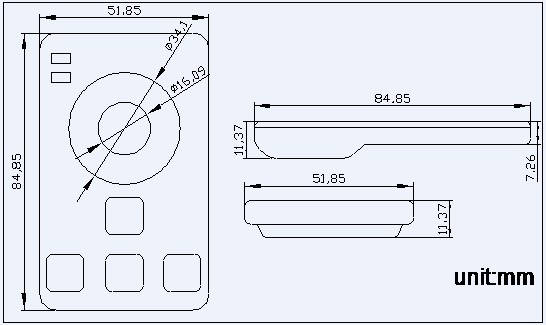

 ● working temperature: -20-60℃

 ● power supply mode: 28*8mm battery

 ● supply voltage: 12V

 ● static power consumption: 0.036mW

 ● standby current: 3uA

 ● work current: 300uA

 ● emission current: 12mA

 ● remote distance: 30m

 ● standby time: 6 months

ON/OFF: you could turn on/off controller at any time;

  MODE: the color change button,there are 21 modes of change for you to choose;

B+: A brightness control button,the grade of the brightness add 1 by each pressing,a total of 100 grades;

B-: The grade of the brightness subtract 1 by each pressing;

S+: The grade of the speed change add 1 by each pressing,a total of 100 grades.

S-: The grade of the speed change subtract 1 by each pressing.



: you can turn on/off controller output at any time;



: this key have 2 functions:

①M is mode choose key, so when the current control mode is pulley mode(color), if you want to realize the mode(color) of M key, can press this button.

②M is mode switch key, so when the current control mode is “M” key mode, can press this button to switch the mode(color) which state in the M key mode table.

: the output signal brightness or speed control, every time you press this button, the

brightness or speed series add 1, altogether 100 levels;





: the output signal brightness or speed control, every time you press this button, the

brightness or speed series minus 1, altogether 100 levels;



: Multicolor pulley touch key, static mode choose key, more than 60 touch points.

                      ①Pulley static color choice key, so when the current control mode is M key mode

(color), if must realize pulley static color, can press this key.

                      ②Pulley color switch key, can change from 60 kinds of static colors (as the pulley

 shown))

2.Power supply management: stop to use the remote more than 20s, the remote will enter the

standby state (untouchable state), to extend the battery life; slightly shake once, then

the remote will come back to the normal working state (touchable state).

①The remote is in working mode (touchable) when the PWR is bright, PWR is off, then means the remote is in standby state (slightly shake once, then it can touch normally);

②RF is bright, that means detected touch button, off means there is no touch button can press.

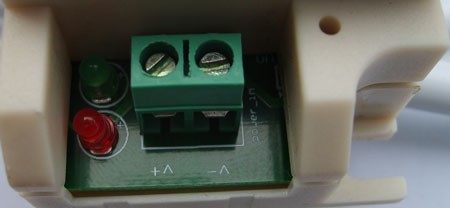

         Power input interface:

Adopt male and female connector with screw.

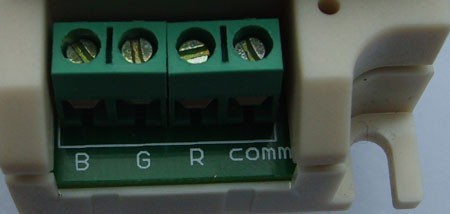

Load output interface:



Adopt male and female connector with screw.

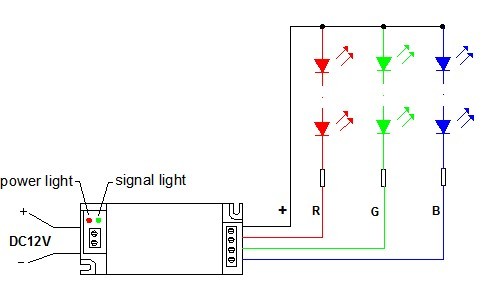

1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；

2, Power supply voltage range is DC12~24V, more than voltage range maybe will burnout the controller.

3, Touch remote when not use for a long time, suggest to take down the battery.
