Wireless SD card plane SPI controller

Detailed Product Description

Summarization

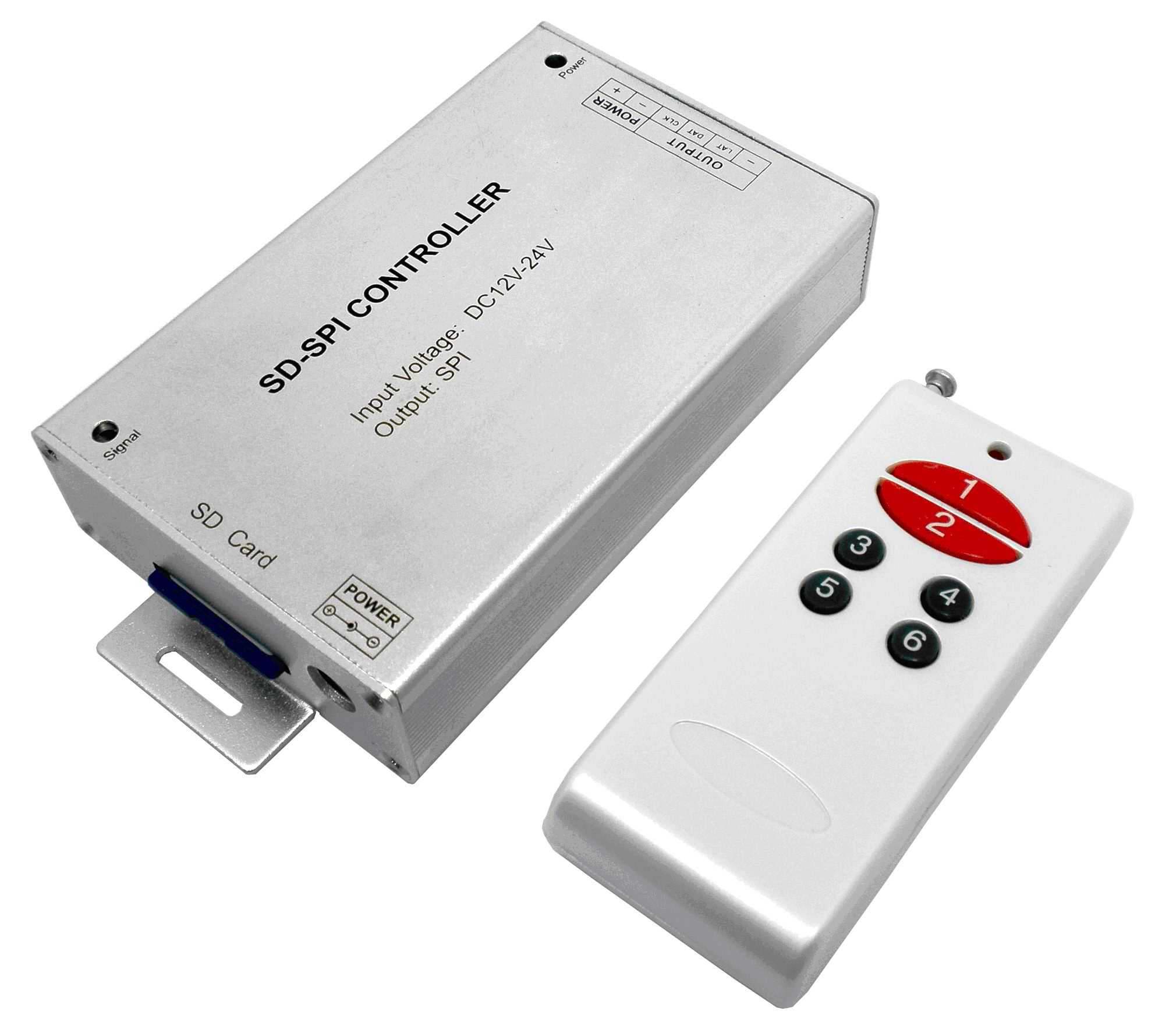

       Wireless SD card plane SPI controller adopts the advanced micro-control unit , it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on;。Using wireless remote control, choose pattern files, adjust rate of change, pause, looping, electric storage and switch function. System power search SD card all the "*. LED" file and press the file name from small to large order, read and play the last saved file and mode. Users can select the Change button pattern. After completing all the files in the selection, then select the file button after growth pattern file for the cycle show. It has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers, it can carry out jumpy changing, gradual changing, strobo flash and other effects of change. User can also edit the data flies through the incidental pattern editing software（Led Editor v1.0）, kinds of change pattern , easy to use , The specific method of editing software see instructions.


Technical parameters
● working temperature: -20-60
● supply voltage: DC12-24V
● output: one SPI signal
● external dimension :L128ΧW64ΧH24 mm
● packing size ：L160ΧW95ΧH50 mm
● net weight : 140g
● gross weight: 175g
● static power consumption ：<1W
● Frame frequency: max 25 frames per second
● communication Format: LPD6803/WS2801/TM1803/DM413/TM1809/D705（note when ordering）
● Control points: 1024
● Grey: 32~255 magnitude（According to drive chip and change）
● Maximum number of documents pattern：64




External Dimention







Remote Specifications









Interface Specifications



Power output interface(mode1):



 Adopt conventional DC power transposon as power input interface, and equip with DC plug.



SD input interface :



Power input interface ( mode2 ):



   Adopt male and female connector with screw.





Load output interface:





Adopt male and female connector with screw







Direction for use



1,Connect the load wire at first, following by the power wire; Please ensure short circuit can not           occur between connecting wire before you turn on the power.

2,There are six keys on the remote controller panel, the function of each key as follows:

   1),ON/OFF: you could turn on/off controller at any time;

   2),PAUSE: In the open controller outputs condition, it can press this button to stop and display the current state of output, and easy to observe.

   3),S+: In the open controller outputs and non-suspended state, it can increase frame frequency through this button, the maximum frame frequency for 25 frames per second.

4),S-: In the open controller outputs and non-suspended state, it can reduce frame frequency through this button, the minimum frame frequency for 1 frames per second.

5),M+: In the open controller outputs and no pause condition, it can choose by the order of the play button up designs files. To preserve in SD card "*.LED" number,  press this button again for looping SD card of pattern files, circulation patterns from the document. After Looping, if pressed again ,it will jump back to the first pattern files.

6),M-: In the Open controller output and non-suspended state, it can choose the broadcast buttons down the order pattern files.

3,Make sure SD card is formatted (FAT32) .

4,Without SD card or SD card reset is not successful, the system plays pre-change programs (seven-color transitions), and the green indicator light is off of (when the green light to follow the normal playback speed of the flash), the user can through this phenomenon to determine fault. If no card plugged in card status, please re-power on reset.

5, After the power, the controller will search the SD card store all led files from small to large order. choose file and press this sequence execution. Therefore, in the SD card in the file name can refer to the drawing of naming, so that in the choice of file name by changing the number before the pattern can change the corresponding file in all the files in the sequence.



6, If you want to put out the SD card ,please power off first, otherwise the SD card will be broken

7, The controller supports the maximum number of valid documents led is 64, that is, when the SD card in the number of files saved led more than 64,only the first search to the document 64 files as a valid document.

8, All parameters in the factory prior to the user's use of the environment and requirements of the configured parameters, edit the data if the user needs its own pattern files, please read the attached documents. If you need other communication formats (LPD6803/WS2801 / TM1803 / DM413/TM1809/D705, etc.), please contact us, we will request you to customize the most suitable for your products.









Typical Application
