FAQs :
1, Why LEDs?
The term LED stands for Light Emitting Diode, which are tiny light bulbs that fit easily into an electrical circuit. But LEDs last much longer than incandescent bulbs because they do not have a filament that will burn out, and the LEDs are always cool to the touch. They are illuminated solely by the movement of electrons in a semiconductor material. A semiconductor is something that will conduct electricity. This semiconductor material is referred to as Solid State Lighting. In a solid state, the LEDs resist vibration and are much more durable than traditional forms of lighting. LEDs use these Light emitting diodes instead of electrical filaments (incandescent) or the gas and mercury used in the compact fluorescent's (CFL's).
Benefits of LED lighting:
High efficiency, up to 80% more efficient than Halogen lights and 50% better than fluorescent, providing you with enormous cost savings.
Customizable Lighting, LEDs are directional, no more wasted light where it is not necessary, 30° 60° 90° or 120° light spread
Colors Available: Warm white (3000K)
Daylight (4500K)
Cool white (6000K)
Red, Green, Blue, Amber & selected custom colors
Most products available in multiple voltages upon request
Additional Benefits
· Safer, no burns when light is touched
· Simple to install (direct replacement for incandescent, CFL & Halogen)
· No RF wavelengths emitted to interfere with radio frequency
· Lights instantly (no warm up period like CFLs)
· Silent operation
· Won't cause migraines like CFLs
· Produce enhanced lighting colors conducive to alertness
· UV free - Won't attract bugs in outdoor applications
· Earth Friendly, keeps waste to a minimum in landfills

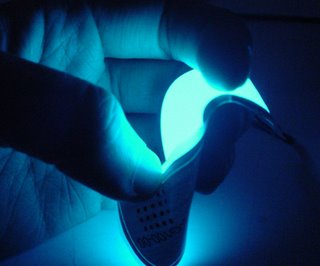

What is EL?
EL: Electroluminescent, through DC electric field result from both positive & negative voltage, bump ZNS on electronic stimulated by electric field, the change with active & positive feedback, composition of electrode which result in a physical phenomenon with high efficiency cold lighting, it is called electric lighting phenomenon. El is an advanced and worldwide lighting while using aforesaid principle.
EL Features:
EL lamp can work perfectly even cut by knife
Visual angle widely, plain and solid lighting source
Super-thin and flat (as thin as 0.12mm)
Light weight
Multiple lighting color
Can be bent and light while bending(radius:5mm)
Strong shockproof
Soft and completely non-glare while looking into the lamp
Low power consumption
Cold light source, no temperature raising while working
Long life (Over25,000hours)
Processing flexible, willfully sharp create animation
No ultraviolet raising while working
High visibility through smoke and fog
Specifications:
| Characteristic | Projection | Specification | Conditions |
| Electrical |
Working voltage range | 30-250VAC | |
| Best working voltage: | 50-110VAC | ||
| Working frequency range | 50-500Hz | ||
| Best working frequency | 400-1200Hz | ||
| Capacitance | 0.42nf/cm² min | 400Hz | |
| Current Draw | 0.14mA/cm² max | 110V40Hz |
|
| Low power consumption | 2mw/cm² max | ||
| Life(High Temp Moisture) | 200Hr/50cd/cm² | 50°C90%RH110V400Hz | |
| Optical |
Blue 50cd/m² | 110V400Hz |
|
| Color | Blue-green 85cd/m² | ||
| Green 85cd/m² | |||
| Initial Luminance | white 75cd/m² | ||
| Life | >25000Hr | Inverter drive |
|
| Ambiental |
Operating Temp | -50°C 60°C | |
| Storage Temp | -60°C 85°C | ||
| Thermal Shock | -20/60°CEmitting without danage on appearance | 5cycles/30min |
EL Applications:
· LCD backlights
Since EL has even brightness, super-thin, low power consumption, EL lighting is the most appropriate light source for LCD backlights. lt results in unestimated
development of EL products. Currently our company has explored and applied EL to instrument/apparatus, acoustic, BP, mobile phone, portable computer, telephone, calculator, clothes, cap and so on.
· Clock, Watch, T-shirt
It is a necessary accessory for all concerts, parties or even raves. SHOW OFF UR PERSONALITY
· Toy ,Electronic gift & Christmas lamp decoration
· Advertising Sign
· Architechtural indoor & Outdoor Decoration

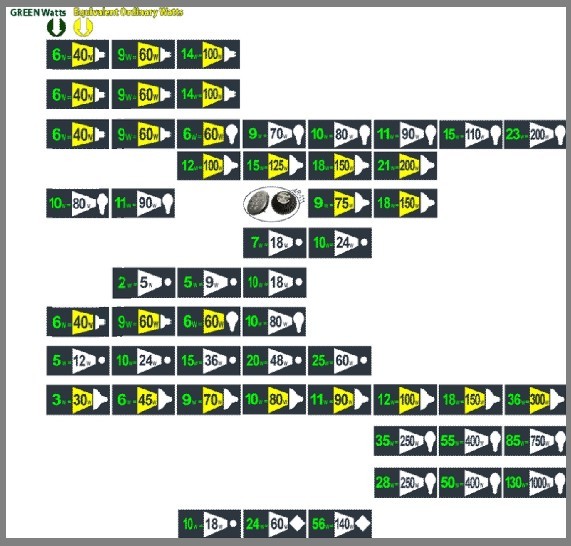

2, The LED replacement guide:
3, Ordering:
We don’t accept ordering online. All orders need to contact with sale@okled.cc to get custom pricing due to unstable rate. Your shipping information will be securely kept on our server.
4, Shipping & Delivery:
We ship with DHL, UPS mostly to all over the world. If you have an account with another shipping provider, we will gladly ship with them if you like. Please contact us prior to your order and we can arrange shipping.
5, Warranty:
2 years warranty provided under normal operating condition. Improper use or unauthorized repair will not be covered by the warranty.
Questions will usually be answered within 24 hours but may take up to 48 hours by support@okled.cc
6, Pricing & Promotion:
Ledlighting offer discounts for volume purchasers. We will individually tailor your account to suit your needs. Please contact us to discuss pricing options available to you.
Ledlighting offer many great promotions throughout the year, some restrictions may apply. Promotions will be offered in our monthly newsletters. If you would like to receive newsletters, you can sign on the left side of home pages.
To qualify for a specific promotion, your order must be placed during the specified promotion period and/or include any necessary promotion codes. We are unable to apply special discounts to items ordered before or after the dates of a promotional offer.
7, Payment Options:
· Paypal : jd4450@163.com
· Western Union:
First Name ( Given name) : Dan ,
Last Name( Surname) : Zhou,
Country : China
· Bank Transfer:
Beneficiary Bank Name: HSBC Hong Kong
Beneficiary Bank Address: 1 Queen's Road Central, Hong Kong
Swift Code: HSBCHKHHHKH
Bank Code:004（optional）
Beneficiary Account Name: Lesterlighting Technology Co., Limited
Beneficiary Account Number: 817-746019-838
